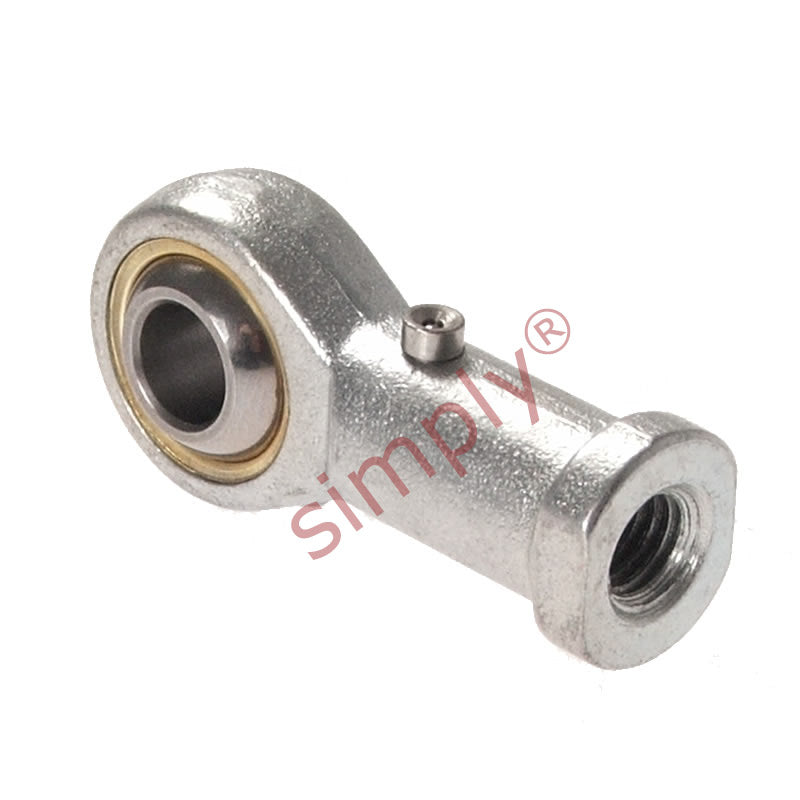

• Budget PHS6L Left Hand Steel / Bronze Lined Plain Female Rod End 6mm Bore M6x1 Thread
1 1

SKU: PHS6L.EU

Budget PHS6L Left Hand Steel / Bronze Lined Plain Female Rod End 6mm Bore M6x1 Thread

Budget PHS6L Left Hand Steel / Bronze Lined Plain Female Rod End 6mm Bore M6x1 Thread
$8.73 ex VAT
$8.73 ex VAT
Sale Sold out

Equivalent to: SILKAC6M FBL-M06

In stock

Price Break
10+ $4.14
19+ $3.91
29+ $3.86
39+ $3.82
49+ $3.77
74+ $3.72
99+ $3.49
199+ $3.45
249+ $3.40
499+ $3.35
999+ $3.26

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Female Rod End with Phosphor Bronze Race: LEFT hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M6x1
Thread M / F:
Female
Thread Direction:
Left Hand
Inside Diameter:
6mm
Material:
Bronze Lined
Technical
d 6mm
B 9mm
r1 0.3mm
C1 6.75mm
d1 max 8.9mm
d2 18mm
d3 M6x1
h1 30mm
L3 13mm
L4 39mm
L5 5mm
d4 10mm
d5 13mm
S 11mm
Ball diameter 1/2 inch
Dynamic load Cr 4.3 kN
Static load Cor 7.1 kN
Max angle α 13
Weight 0.025 kg
