SKU: PHS28L.EU

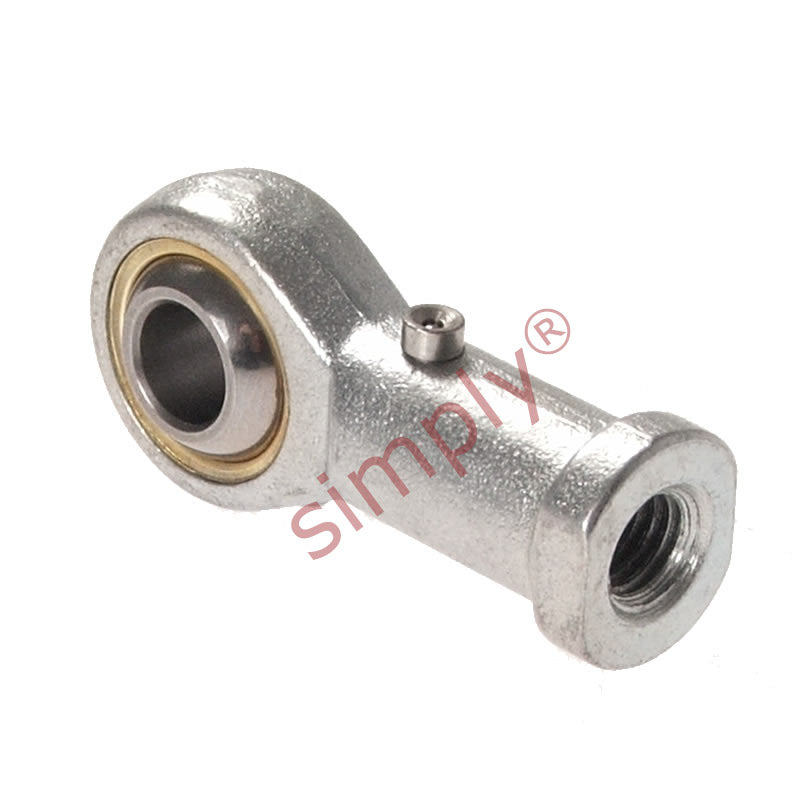

Budget PHS28L Left Hand Steel / Bronze Lined Plain Female Rod End 28mm Bore M27x2 Thread

Name: Budget PHS28L Left Hand Steel / Bronze Lined Plain Female Rod End 28mm Bore M27x2 Thread
Brand: Gen
SKU: PHS28L.EU
Price: 277.29 CAD
Availability: InStock

$277.29 ex VAT

Sale Sold out

In stock

Price Break

10+ $131.66

19+ $124.27

29+ $122.79

39+ $121.31

49+ $119.83

74+ $118.35

99+ $110.95

199+ $109.47

249+ $107.99

499+ $106.51

999+ $103.55

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Female Rod End with Phosphor Bronze Race: LEFT hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M27x2
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 28mm
Material:: Bronze Lined

Technical

d	28mm
B	35mm
r1	0.6mm
C1	25mm
d1 max	32.29mm
d2	66mm
d3	M27x2
h1	103mm
L3	53mm
L4	136mm
L5	12mm
d4	37mm
d5	46mm
S	41mm
Ball diameter	1-7/8 inch
Dynamic load Cr	59.5 kN
Static load Cor	88.7 kN
Max angle α	15
Weight	0.95 kg
