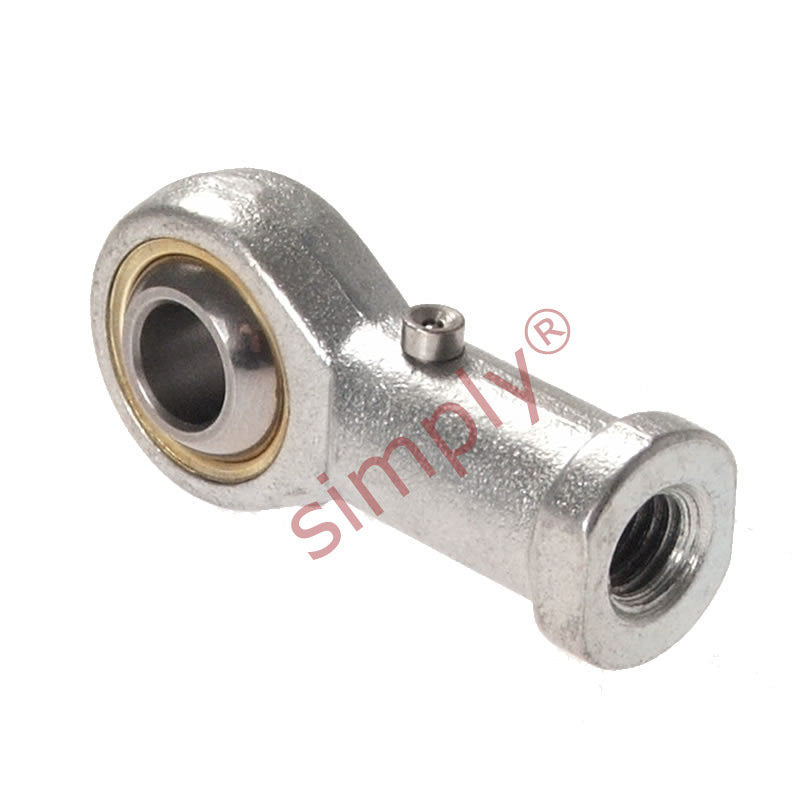

Budget PHS17L Left Hand Steel / Bronze Lined Plain Female Rod End 17mm Bore M16x1.5 Thread

Name: Budget PHS17L Left Hand Steel / Bronze Lined Plain Female Rod End 17mm Bore M16x1.5 Thread
Brand: Gen
SKU: PHS17L.EU
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Female Rod End with Phosphor Bronze Race: LEFT hand thread female rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M16x1.5
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 17mm
Material:: Bronze Lined

Technical

d	17mm
B	22mm
r1	0.6mm
C1	16mm
d1 max	20.6mm
d2	40mm
d3	M16x1.5
h1	67mm
L3	34mm
L4	87mm
L5	10mm
d4	24mm
d5	31mm
S	27mm
Ball diameter	1-3/16 inch
Dynamic load Cr	23.8 kN
Static load Cor	28.4 kN
Max angle α	14
Weight	0.259 kg
