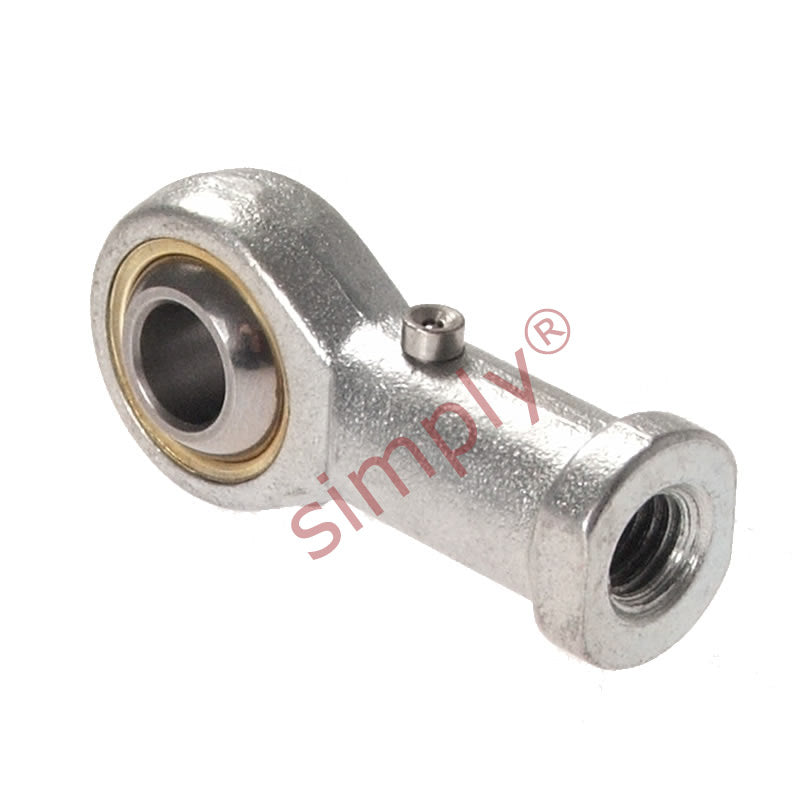

• Budget PHS14/F1 Right Hand Steel / Bronze Lined Plain Female Rod End 14mm Bore M14x1.5 Thread
1 1

SKU: PHS14/F1.EU

Budget PHS14/F1 Right Hand Steel / Bronze Lined Plain Female Rod End 14mm Bore M14x1.5 Thread

Budget PHS14/F1 Right Hand Steel / Bronze Lined Plain Female Rod End 14mm Bore M14x1.5 Thread
$44.14 ex VAT
$44.14 ex VAT
Sale Sold out

In stock

Price Break
10+ $20.96
19+ $19.78
29+ $19.55
39+ $19.31
49+ $19.08
74+ $18.84
99+ $17.66
199+ $17.43
249+ $17.19
499+ $16.96
999+ $16.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M14x1.5
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
14mm
Material:
Bronze Lined
Technical
d 14mm
B 19mm
r1 0.6mm
C1 13.5mm
d1 max 16.8mm
d2 34mm
d3 M14x1.5
h1 57mm
L3 27mm
L4 74mm
L5 8mm
d4 20mm
d5 25mm
S 22mm
Ball diameter 1 inch
Dynamic load Cr 17.1 kN
Static load Cor 21.3 kN
Max angle α 16
Weight 0.16 kg
