SKU: PFD20WF-SKF

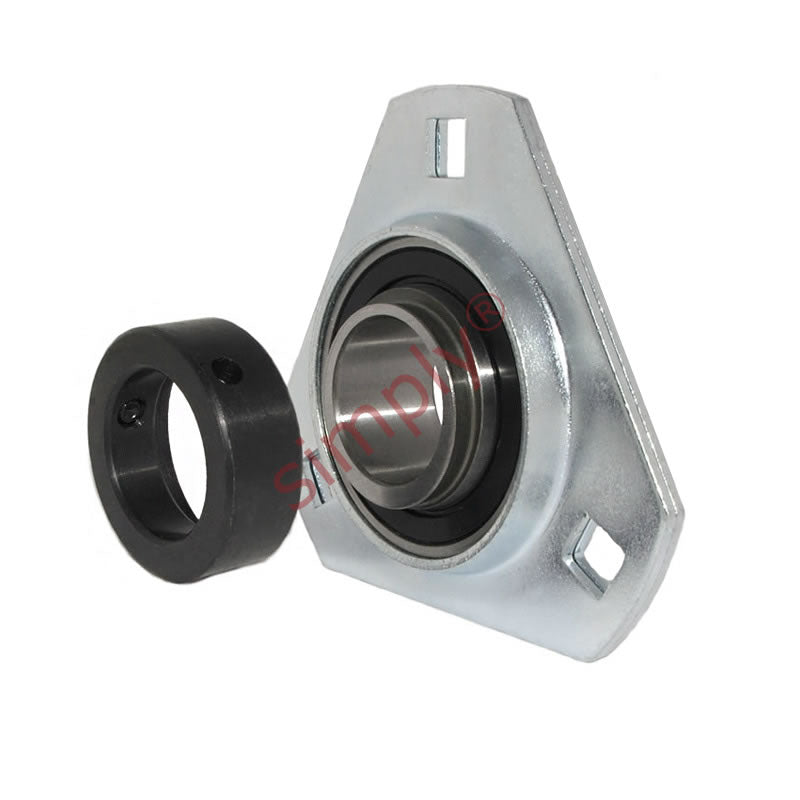

SKF PFD20FM Pressed Steel Triangular Housing with Eccentric Locking Collar 20mm Insert
SKF PFD20FM Pressed Steel Triangular Housing with Eccentric Locking Collar 20mm Insert
Out of stock
Description
Description
| SKF Triangular Flanged Y-bearing Units with Pressed Steel Housing and an Eccentric Locking Collar: These units are designed for simple applications with limited loads and speeds. These triangular flanged housings are made of pressed steel and have three square holes for attachment bolts. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Style:
- PFD
- Pitch Circle Diameter:
- 71.5mm
Technical
Technical
| d | 20mm |
|---|---|
| A1 | 2mm |
| A2 | 8mm |
| B1 | 43.7mm |
| Da | 55mm |
| H | 91mm |
| H1/L | 32mm |
| J | 71.5mm |
| N | 8.7mm |
| G | 8mm |
| T | 28.6mm |
| Static load Cr | 6.55 kN |
| Dynamic load Cor | 12.7 kN |
| Fatigue load limit Pu | 0.28 kN |
| Permissible housing load | 3.3 kN |
| Weight | 0.29 kg |
