SKU: PE-210FL-FLEX
FLEXEPULSE 3/8 inch 2SN Hydraulic Hose - Per Metre - Allow 2-3 Days
In stock
Price Break
Couldn't load pickup availability
Share this product
Description

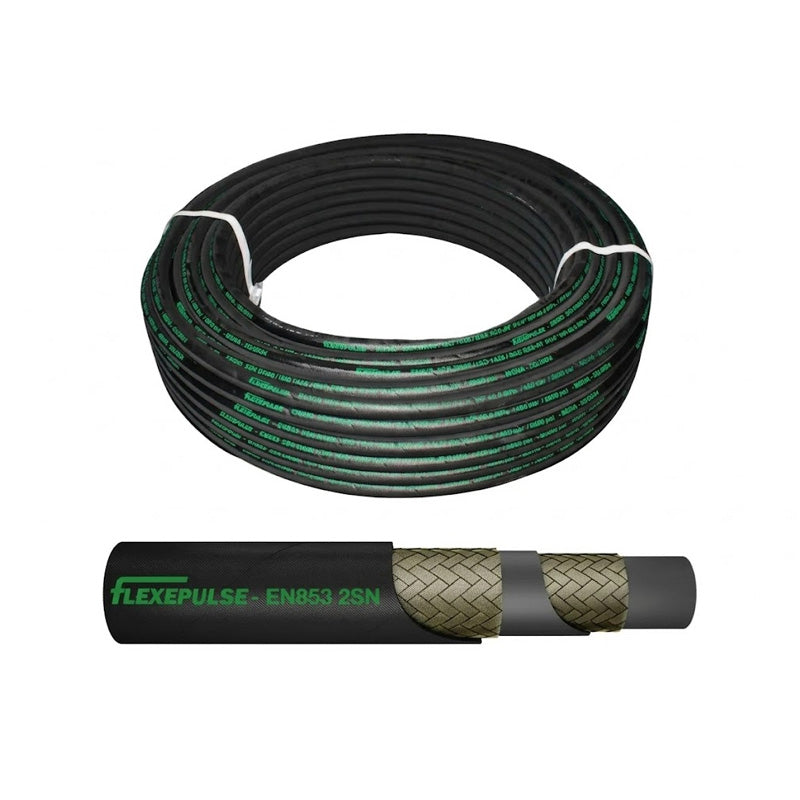

FLEXEPULSE 2SN Hydraulic Hose: This is a durable hose designed for medium to high-pressure hydraulic applications. Featuring a braided 2-wire construction with maximum-strength steel wire braids, it meets SAE 100 R2S, EN853 2SN, and ISO 1436-2SN standards, and is qualified for 400,000 impulse cycles. The hose's synthetic rubber core is resistant to hydraulic fluids, while its abrasion and ozone-resistant cover ensures long-lasting performance. Suitable for temperatures from -40°C to 100°C (up to 120°C intermittently), it pairs well with PF15/PF12 ferrules.
Benefits: High durability and strength, broad temperature and fluid compatibility, long-term performance
- Brand / Quality:
- FLEXEPULSE - High Quality
- Inside Diameter:
- 3/8 inch
- Outside Diameter:
- 19.1mm
- Max Working Pressure:
- 330 bar / 4785 psi
Technical
| Hose Size | 10 Din |
|---|---|
| Hose Size | 3/8 inch |
| Nominal Inside | 9.8mm |
| Nominal Hose OD | 19.1mm |
| Max. Working Pressure | 330 bar |
| Max. Working Pressure | 4785 psi |
| Min. Burst Pressure | 1320 bar |
| Min. Burst Pressure | 19140 psi |
| Min. Bend Radius | 4.9 inch |
| Min. Bend Radius | 125mm |
| Weight | 0.594 kg |
