SKU: PD6+PDR6+PDC5/6
Chiavette PD6 Steel Clevis Pin Kit 6x18mm - Allow 7-10 Days
Chiavette PD6 Steel Clevis Pin Kit 6x18mm - Allow 7-10 Days
Out of stock
Description
Description

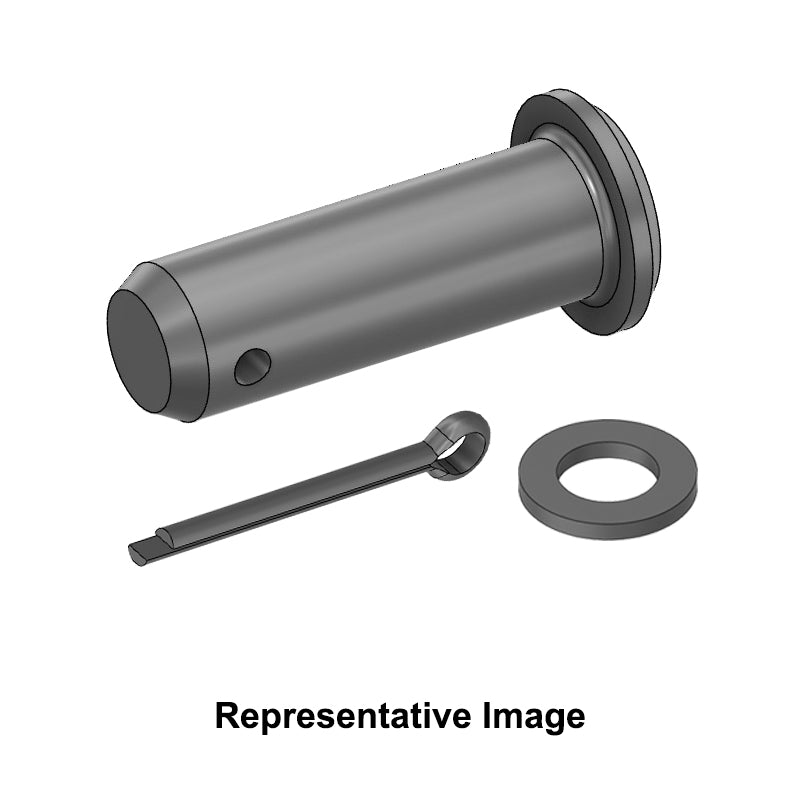

Chiavette Steel Clevis Pin with Washer and Cotter Pin: This kit includes a clevis pin and a matching washer and cotter pin to ensure secure and steadfast attachment in various applications. Clevis pins enable secure attachment and 360-degree swivel or rotational action of linked parts. The clevis pin itself fits in between the forks of a clevis and is secured on one end with the cotter pin. Crafted from high-quality steel, our clevis pin set guarantees exceptional strength and longevity.
- Brand / Quality:
- Chiavette - High Quality
- Inside Diameter:
- 6mm
- Length:
- 9mm
- Material:
- Steel
Technical
Technical
| --- | Clevis Pin |
|---|---|
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PD6+Pin>PD6</a> |
| Material | Steel |
| d | 6mm |
| D | 9mm |
| k | 1.5mm |
| z | 0.5mm |
| z1 | 1mm |
| r | 0.5mm |
| d2 | 1.6mm |
| l1 | 15mm (+0.5mm) |
| l | 18mm (+0.5mm) |
| Weight each | 0.004kg |
| --- | Washer |
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PDR6+Washer>PDR6</a> |
| Material | Steel |
| d1 | 6.4mm |
| d2 | 11mm |
| s | 1.6mm |
| Weight | 0.079kg |
| --- | Retainer |
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PDC5/6+Retainer>PDC5/6</a> |
| Material | Steel |
| l | 10mm |
| u | 2mm |
| e | 3.3mm |
| b | 2mm |
| a | 1.3mm |
| Weight | 0.079 |
