SKU: PD42+PDR42+PDC35/42

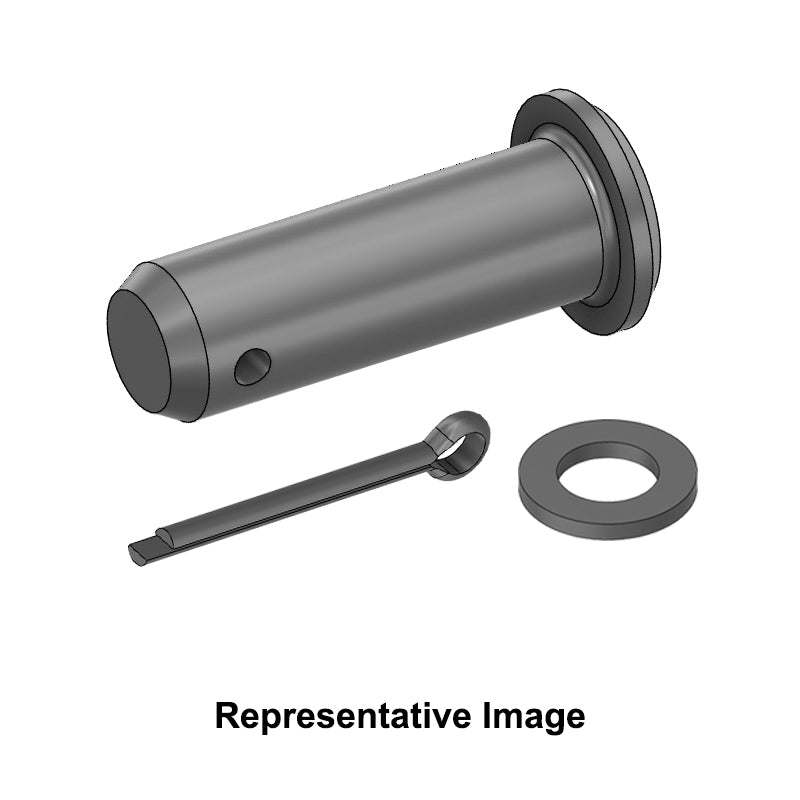

Chiavette PD42 Steel Clevis Pin Kit 42x108mm - Allow 7-10 Days
Chiavette PD42 Steel Clevis Pin Kit 42x108mm - Allow 7-10 Days
Out of stock
Description
Description
Chiavette Steel Clevis Pin with Washer and Cotter Pin: This kit includes a clevis pin and a matching washer and cotter pin to ensure secure and steadfast attachment in various applications. Clevis pins enable secure attachment and 360-degree swivel or rotational action of linked parts. The clevis pin itself fits in between the forks of a clevis and is secured on one end with the cotter pin. Crafted from high-quality steel, our clevis pin set guarantees exceptional strength and longevity.
- Brand / Quality:
- Chiavette - High Quality
- Inside Diameter:
- 42mm
- Length:
- 48mm
- Material:
- Steel
Technical
Technical
| --- | Clevis Pin |
|---|---|
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PD42+Pin>PD42</a> |
| Material | Steel |
| d | 42mm |
| D | 48mm |
| k | 6mm |
| z | 2mm |
| z1 | 4mm |
| r | 2mm |
| d2 | 8mm |
| l1 | 98mm (+0.5mm) |
| l | 108mm (+0.5mm) |
| Weight each | 1.259kg |
| --- | Washer |
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PDR42+Washer>PDR42</a> |
| Material | Steel |
| d1 | 42mm |
| d2 | 78mm |
| s | 7mm |
| Weight | 18.635kg |
| --- | Retainer |
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PDC35/42+Retainer>PDC35/42</a> |
| Material | Steel |
| l | 60mm |
| u | 3mm |
| e | 13.5mm |
| b | 7.7mm |
| a | 7.7mm |
| Weight | 18.635 |
