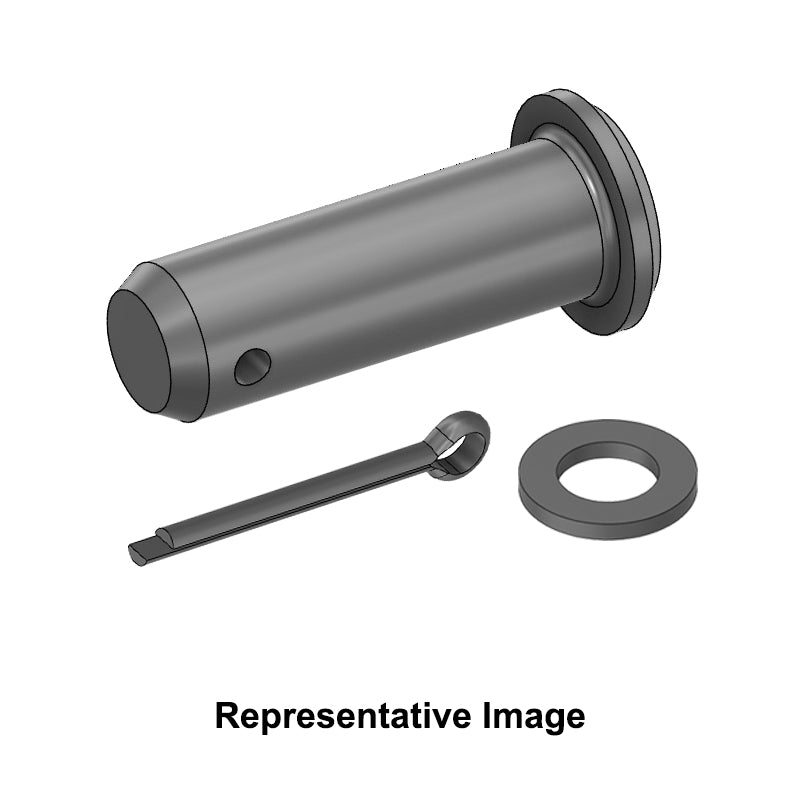

Chiavette PD10 Steel Clevis Pin Kit 10x29mm - Allow 7-10 Days
Chiavette PD10 Steel Clevis Pin Kit 10x29mm - Allow 7-10 Days
Out of stock
Share this product
Description
Description
Chiavette Steel Clevis Pin with Washer and Cotter Pin: This kit includes a clevis pin and a matching washer and cotter pin to ensure secure and steadfast attachment in various applications. Clevis pins enable secure attachment and 360-degree swivel or rotational action of linked parts. The clevis pin itself fits in between the forks of a clevis and is secured on one end with the cotter pin. Crafted from high-quality steel, our clevis pin set guarantees exceptional strength and longevity.
- Brand / Quality:
- Chiavette - High Quality
- Inside Diameter:
- 10mm
- Length:
- 14mm
- Material:
- Steel
Technical
Technical
| --- | Clevis Pin |
|---|---|
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PD10+Pin>PD10</a> |
| Material | Steel |
| d | 10mm |
| D | 14mm |
| k | 2mm |
| z | 1mm |
| z1 | 1.5mm |
| r | 0.5mm |
| d2 | 3.2mm |
| l1 | 24.5mm (+0.5mm) |
| l | 29mm (+0.5mm) |
| Weight each | 0.017kg |
| --- | Washer |
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PDR10+Washer>PDR10</a> |
| Material | Steel |
| d1 | 10.5mm |
| d2 | 18mm |
| s | 1.6mm |
| Weight | 0.211kg |
| --- | Retainer |
| No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=PDC10+Retainer>PDC10</a> |
| Material | Steel |
| l | 20mm |
| u | 2mm |
| e | 5mm |
| b | 3mm |
| a | 2.7mm |
| Weight | 0.211 |
