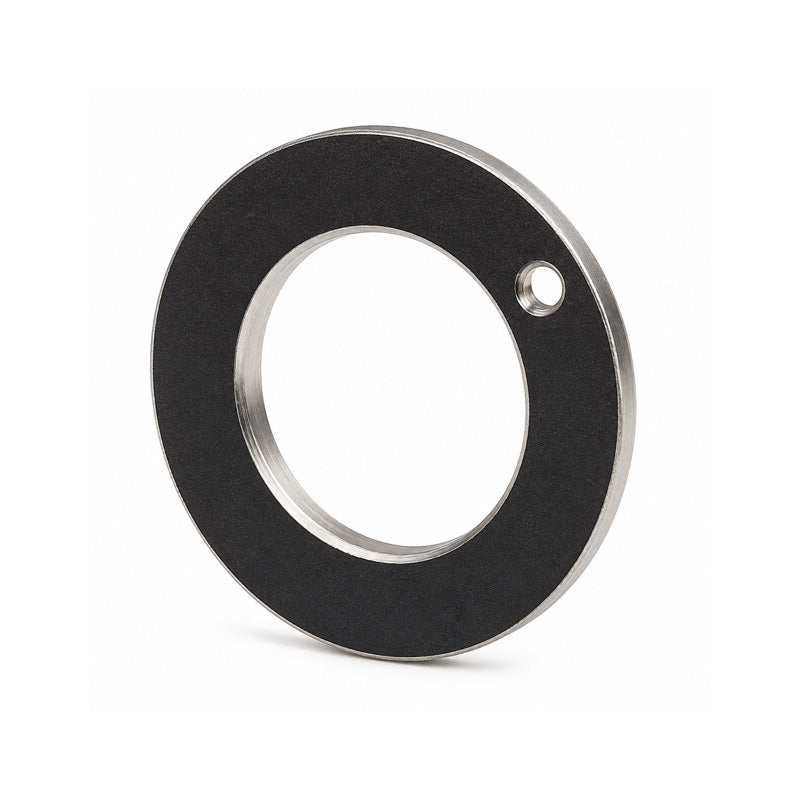

PCMW325401.5E Metric Thrust Washer 32x54x1.5mm

SKU: PCMW325401.5E-SKF

PCMW325401.5E Metric Thrust Washer 32x54x1.5mm

$18.90 ex VAT
$18.90
ex VAT
In stock

Quantity Price Breaks

9 $16.82
19 $15.88
29 $15.69
39 $15.50
49 $15.31
69 $15.12
99 $14.18
199 $13.99
249 $13.80
499 $13.61
999 $13.23
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
PCMW325401.5E Metric Thrust Washer 32x54x1.5mm
SKU: PCMW325401.5E-SKF

PCMW325401.5E Metric Thrust Washer 32x54x1.5mm

$18.90 ex VAT
$18.90
ex VAT

Description

PCMW-E Thrust Washers: Thrust washers of triple-layer PTFE composite material. Suitable for space-saving axial locating bearing arrangements. For slow rotational or oscillating movements. Initial lubrication not required. Maintenance-free.
PTFE E composite: PTFE composite bearings consist of a copperplated sheet steel backing on which a 0,2 to 0,4 mm thick porous layer of tin/bronze is sintered. By a rolling process, the pores of the sintered layer are filled with a mixture of PTFE (polytetrafluoroethylene) and molybdenum disulphide. An additional 5 to 30 mm thick running-in layer of the mixture is then applied to the sintered tin/bronze. This additional layer provides an optimum combination of the mechanical properties of the sintered tin/bronze and the good sliding and lubricating properties of the PTFE mixture. PTFE composite bearings have good dimensional stability and thermal conductivity.
