SKU: PCMF161817E-SKF

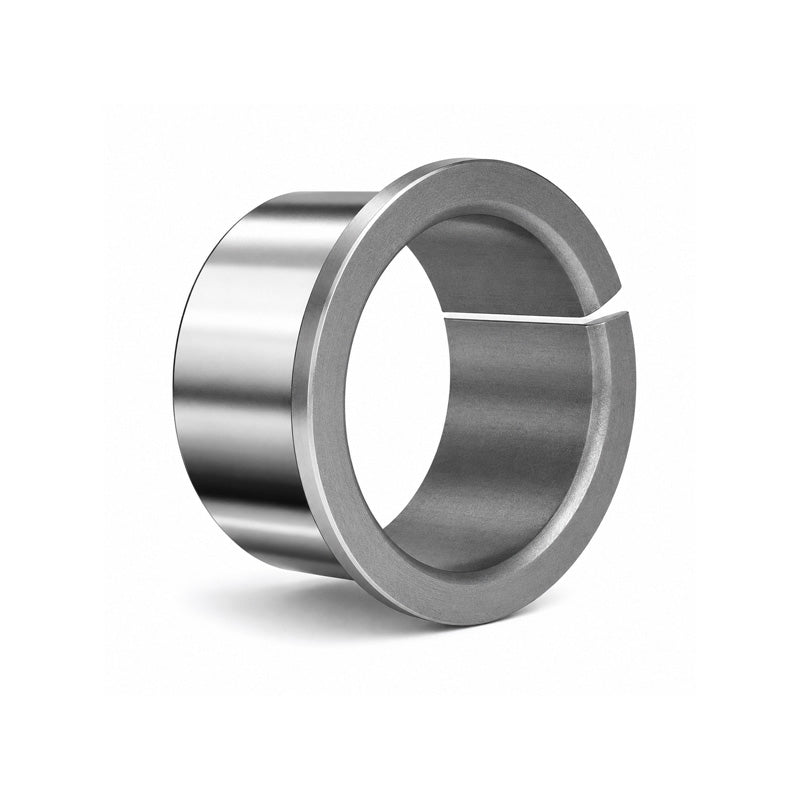

SKF PCMF161817E Metric Flanged Bush 16x18x17mm

$6.02 ex VAT
$6.02
ex VAT
In stock

Quantity Price Breaks

10+ $5.36
19+ $5.06
29+ $5.00
39+ $4.94
49+ $4.88
74+ $4.82
99+ $4.52
199+ $4.45
249+ $4.39
499+ $4.33
999+ $4.21
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
placeholder-svg
SKU: PCMF161817E-SKF

SKF PCMF161817E Metric Flanged Bush 16x18x17mm

$6.02 ex VAT
$6.02
ex VAT

Description

PCMF Ball Bushing: Plain bushings with a flange on one side, made of triple-layer PTFE composite material. Suitable for bearing arrangements that have to accommodate radial as well as axial loads. For slow rotational or oscillating movements. Initial lubrication not required. Maintenance-free.
PTFE E composite: PTFE composite bearings consist of a copperplated sheet steel backing on which a 0,2 to 0,4 mm (0.008 to 0.015 inch) thick porous layer of tin/bronze is sintered. By a rolling process, the pores of the sintered layer are filled with a mixture of PTFE (polytetrafluoroethylene) and molybdenum disulphide. An additional 5 to 30 mm thick running-in layer of the mixture is then applied to the sintered tin/bronze. This additional layer provides an optimum combination of the mechanical properties of the sintered tin/bronze and the good sliding and lubricating properties of the PTFE mixture. PTFE composite bearings have good dimensional stability and thermal conductivity.
