SKU: PC14M-50S-37-TB-F

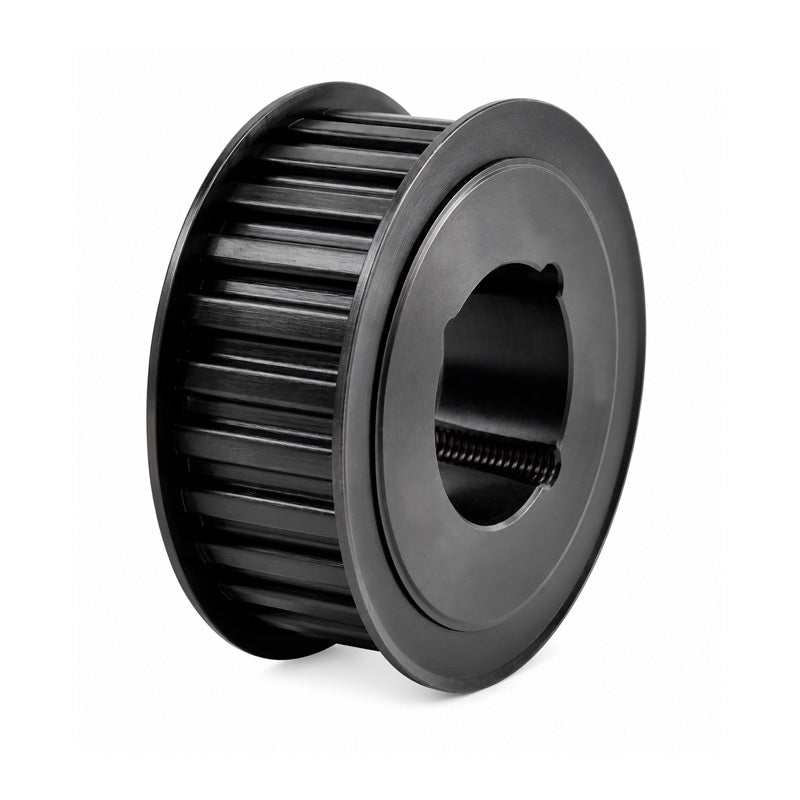

Martin Synchrochain / Polychain PC14M-50S-37 222.82mm Pitch Diameter 50 Teeth Tapered Bore Timing Belt Pulley (Bush not Incl.) Allow 7-10 Days
Martin Synchrochain / Polychain PC14M-50S-37 222.82mm Pitch Diameter 50 Teeth Tapered Bore Timing Belt Pulley (Bush not Incl.) Allow 7-10 Days
Equivalent to: 14M-50S-37
Out of stock
Share this product
Description
Description
Martin SYNCHROCHAIN® / POLYCHAIN® Tapered Bore High Torque Drive Timing Belt Pulley: High quality metric pitch timing pulleys are used along with timing belts. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.
- Brand / Quality:
- Martin - High Quality
- Outside Diameter:
- 220.02mm
- Pitch Diameter:
- 222.82mm
- Number of Teeth:
- 50
Technical
Technical
| No. teeth | 50 |
|---|---|
| Bush no. | <a href="advanced_search_result.php?sort=2a&search_in_description=0&keywords=3020+tapered+locking">3020 Click Here</a> |
| Max. Bore | 75mm |
| Pitch Diameter Dp | 222.82mm |
| External Diameter of Teeth De | 220.02mm |
| Flange Diameter Df | 240mm |
| Width over Flanges F | 51mm |
| S | 51mm |
| Pitch | 14mm |
