SKU: PC14M-28S-37-TB-F

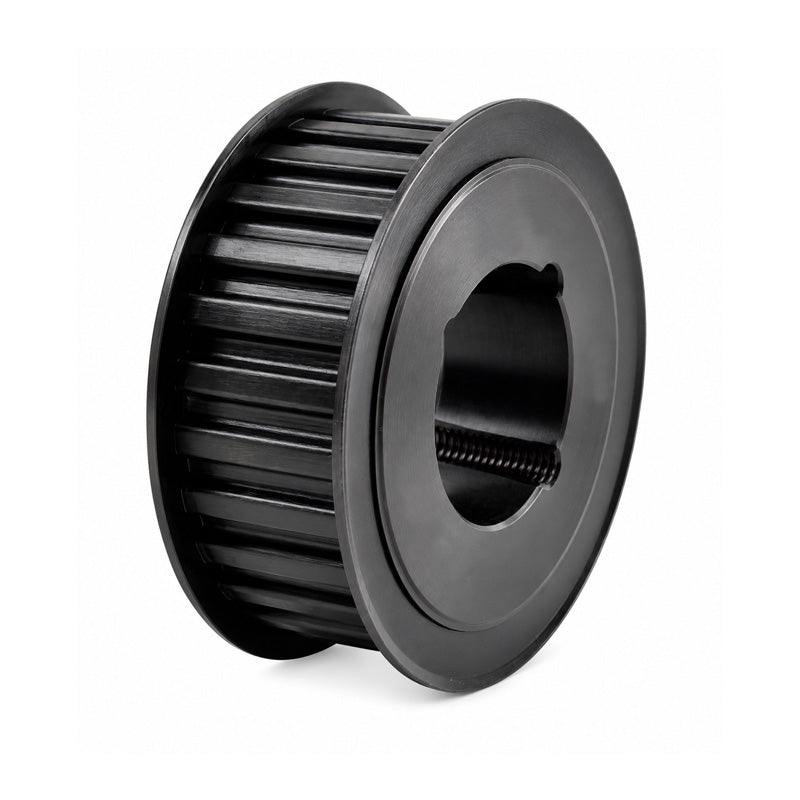

Martin Synchrochain / Polychain PC14M-28S-37 124.78mm Pitch Diameter 28 Teeth Tapered Bore Timing Belt Pulley (Bush not Incl.) Allow 7-10 Days
Martin Synchrochain / Polychain PC14M-28S-37 124.78mm Pitch Diameter 28 Teeth Tapered Bore Timing Belt Pulley (Bush not Incl.) Allow 7-10 Days
Equivalent to: 14M-28S-37
Out of stock
Share this product
Description
Description
Martin SYNCHROCHAIN® / POLYCHAIN® Tapered Bore High Torque Drive Timing Belt Pulley: High quality metric pitch timing pulleys are used along with timing belts. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.
- Brand / Quality:
- Martin - High Quality
- Outside Diameter:
- 121.98mm
- Pitch Diameter:
- 124.78mm
- Number of Teeth:
- 28
Technical
Technical
| No. teeth | 28 |
|---|---|
| Bush no. | <a href="advanced_search_result.php?sort=2a&search_in_description=0&keywords=2012+tapered+locking">2012 Click Here</a> |
| Max. Bore | 50mm |
| Pitch Diameter Dp | 124.78mm |
| External Diameter of Teeth De | 121.98mm |
| Flange Diameter Df | 128mm |
| Di | 88mm |
| Width over Flanges F | 51mm |
| P | 19mm |
| S | 32mm |
| Pitch | 14mm |
