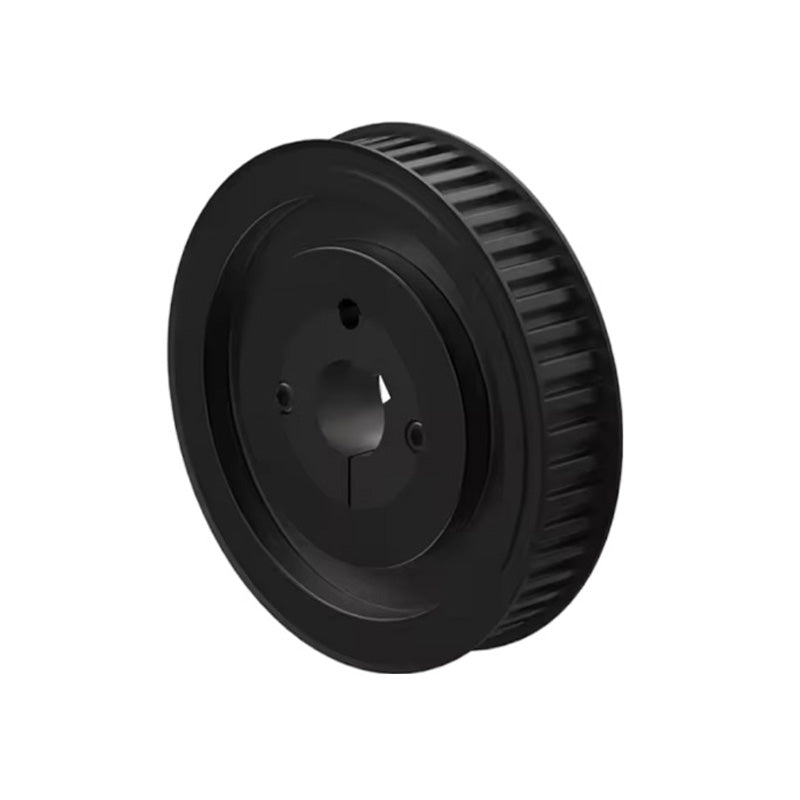

Dunlop 48-XH-400 Belt Number XH 48 Teeth Imperial Cast Iron Pilot Bore Timing Pulley Without Flanges (Bush not Incl.)

Imperial Pilot Bore Timing Pulley: Imperial timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.

Brand / Quality:

Dunlop - Good Quality

Bore:

135mm

Outside Diameter:

336.78mm

Width:

119mm

Material:

Cast Iron

Belt Number:

XH400

Number of Teeth:

48

Pitch Circle Diameter:

339.57mm
