SKU: P80R35TF-SKF

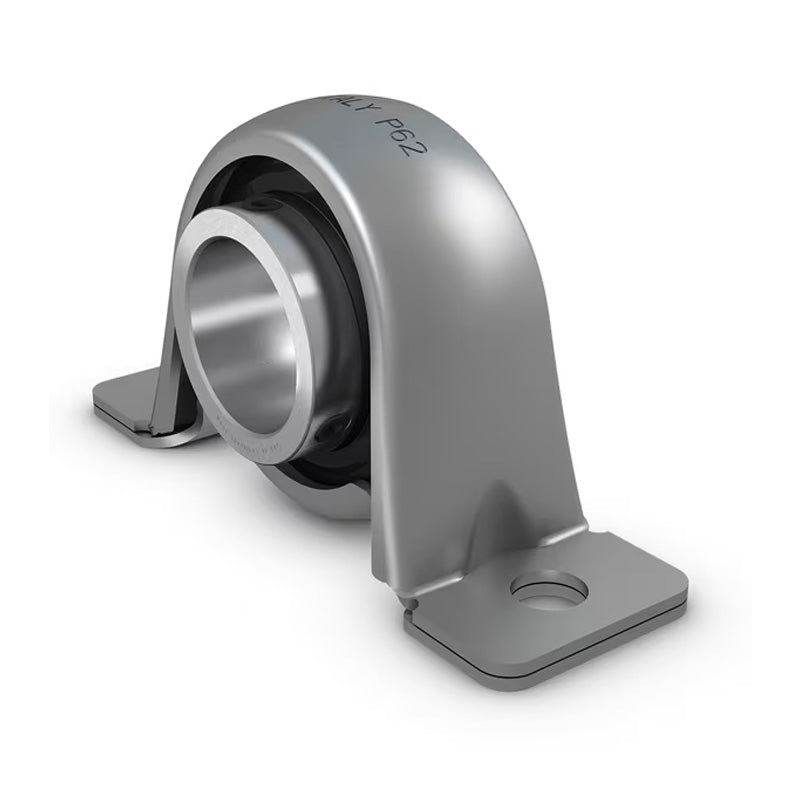

SKF P80R35TF Pressed Steel Plummer Block with Grub Screw Insert 35mm Bore
SKF P80R35TF Pressed Steel Plummer Block with Grub Screw Insert 35mm Bore
Out of stock
Description
Description
| SKF Y-bearing Plummer Block Units with a Pressed Steel Housing: These units are designed for simple applications with limited loads and speeds. The two-part housing, which has no provision for re-lubrication, is ordered separately from the insert bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Style:
- P
- Bolt Hole Centres:
- 120mm
Technical
Technical
| d | 35mm |
|---|---|
| A | 43mm |
| A1 | 29mm |
| B | 42.9mm |
| H | 86mm |
| H1 | 43.5mm |
| H2 | 5mm |
| J | 120mm |
| L | 148mm |
| N | 14mm |
| G | 12mm |
| s1 | 25.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Permissible housing load radial | 3.8 kN |
| Weight | 0.74 kg |
| Housing | YAR207-2F |
| Insert | P80 |
