SKU: P52R20RM-SKF

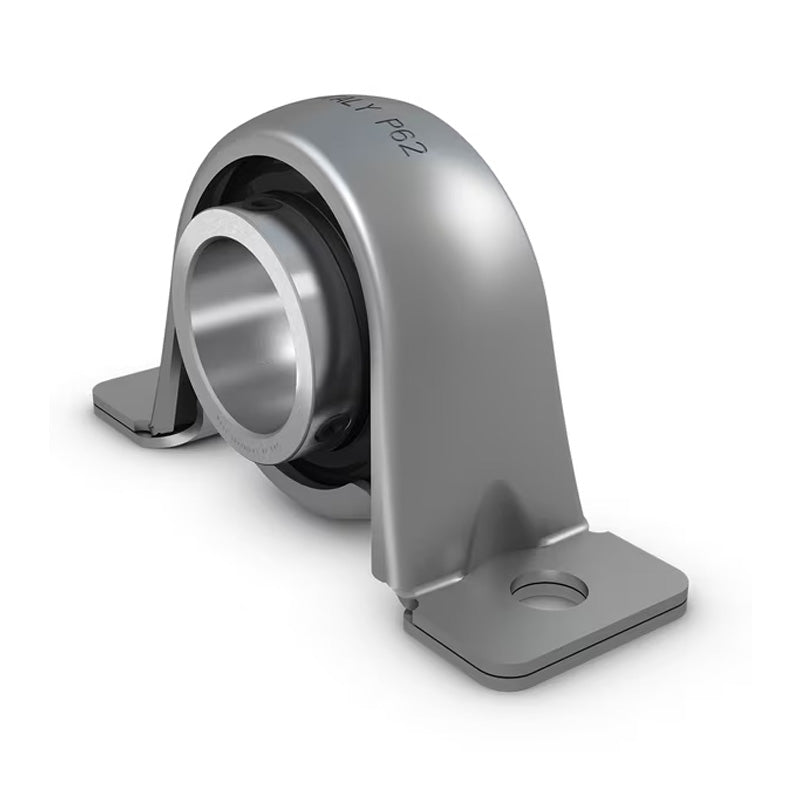

SKF P52R20RM Pressed Steel Plummer Block with Grub Screw Insert 20mm Bore
SKF P52R20RM Pressed Steel Plummer Block with Grub Screw Insert 20mm Bore
Out of stock
Description
Description
| SKF Y-bearing Plummer Block Units with a Pressed Steel Housing: These units are designed for simple applications with limited loads and speeds. The two-part housing, which has no provision for re-lubrication, is ordered separately from the insert bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Style:
- P
- Bolt Hole Centres:
- 86mm
Technical
Technical

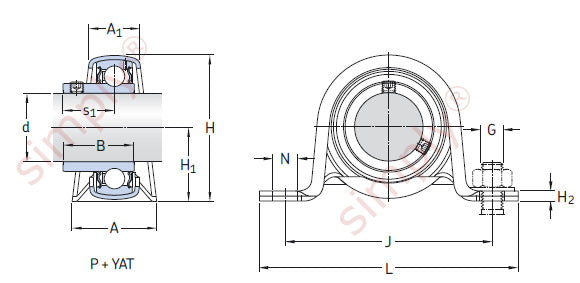

| d | 20mm |
|---|---|
| A | 32mm |
| A1 | 24mm |
| B | 25.5mm |
| H | 56mm |
| H1 | 28.3mm |
| H2 | 3.2mm |
| J | 86mm |
| L | 108mm |
| N | 11.2mm |
| G | 10mm |
| s1 | 18.3mm |
| Static load Cr | 6.55 kN |
| Dynamic load Cor | 12.7 kN |
| Fatigue load limit Pu | 0.28 kN |
| Permissible housing load radial | 1.8 kN |
| Weight | 0.23 kg |
| Housing | YAT204 |
| Insert | P52 |
