SKU: P45FM-SKF

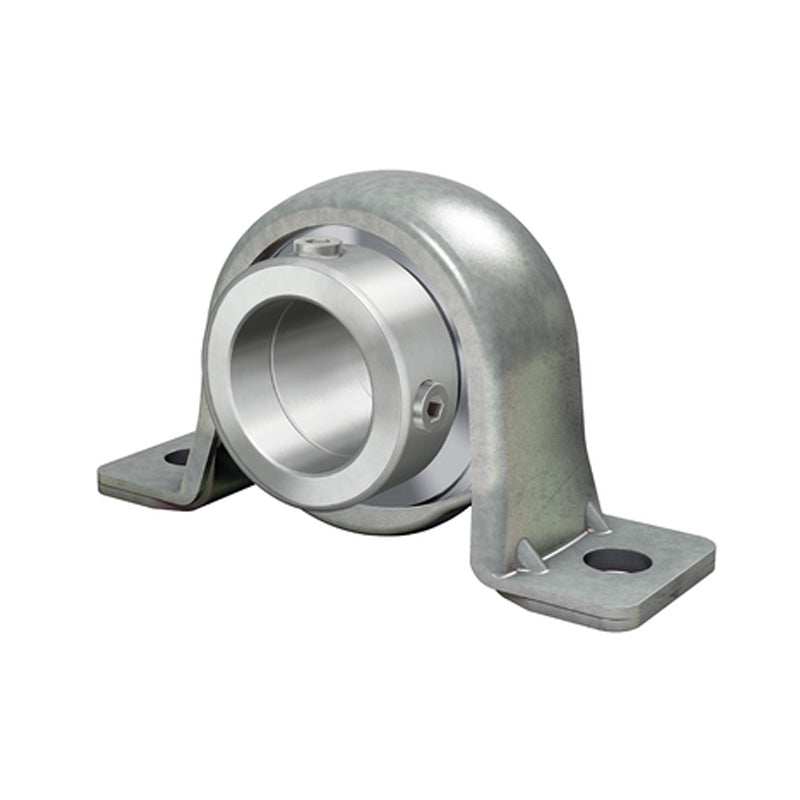

SKF P45FM Pressed Steel Plummer Block with Grub Screw Insert 45mm Bore
SKF P45FM Pressed Steel Plummer Block with Grub Screw Insert 45mm Bore
Out of stock
Description
Description
| SKF Y-bearing Plummer Block Units with a Pressed Steel Housing and Locking Collar: These units are designed for simple applications with limited loads and speeds. The two-part housing, which has no provision for re-lubrication, is ordered separately from the insert bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Style:
- P
- Bolt Hole Centres:
- 128mm
Technical
Technical
| d | 45mm |
|---|---|
| A | 45mm |
| A1 | 31mm |
| B1 | 43.7mm |
| H | 92mm |
| H1 | 46.4mm |
| H2 | 6mm |
| J | 128mm |
| L | 156mm |
| N | 14mm |
| G | 12mm |
| s1 | 32.7mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.915 kN |
| Permissible housing load radial | 4.2 kN |
| Weight | 1.05 kg |
| Housing | YET209 |
| Insert | P85 |
