SKU: NX12Z-MB

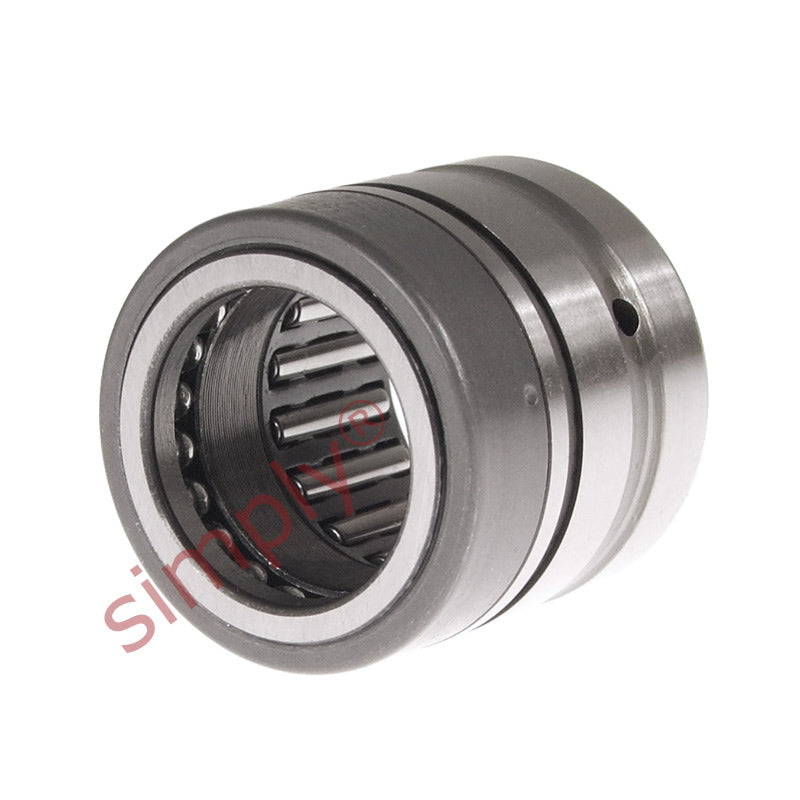

Major Brand NX12Z Needle Roller / Full Complement Thrust Ball Bearing 12x21x18mm

Name: Major Brand NX12Z Needle Roller / Full Complement Thrust Ball Bearing 12x21x18mm
Brand: Major Brand
SKU: NX12Z-MB
Price: 57.00 CAD
Availability: InStock

$57.00 ex VAT

Sale Sold out

In stock

Price Break

10+ $27.07

19+ $25.55

29+ $25.24

39+ $24.94

49+ $24.63

74+ $24.33

99+ $22.81

199+ $22.50

249+ $22.20

499+ $21.90

999+ $21.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 12mm
Outside Diameter:: 21mm
Width:: 18mm

Technical

Fw	12mm
D	21mm
C	18mm
Dynamic load	5500 N
Static load	5400 N
Axial dynamic load	5270 N
Axial static load	9650 N
Fatigue load limit radial Pu	610 N
Fatigue load limit axial Pu	355 N
Min load factor A	0.48
Speed in grease	6000 rpm
C1	4.7mm
d	12mm
r1r2 min	0.3mm
da	16.5mm
Da max	19mm
Ca	10mm
ra max	0.3mm
di	8mm
F	12mm
Bi	10mm
Inner Ring	IR8x12x10
Retaining Ring	SW21
Weight	28 g
