SKU: NUP2315-E-TVP2-C3

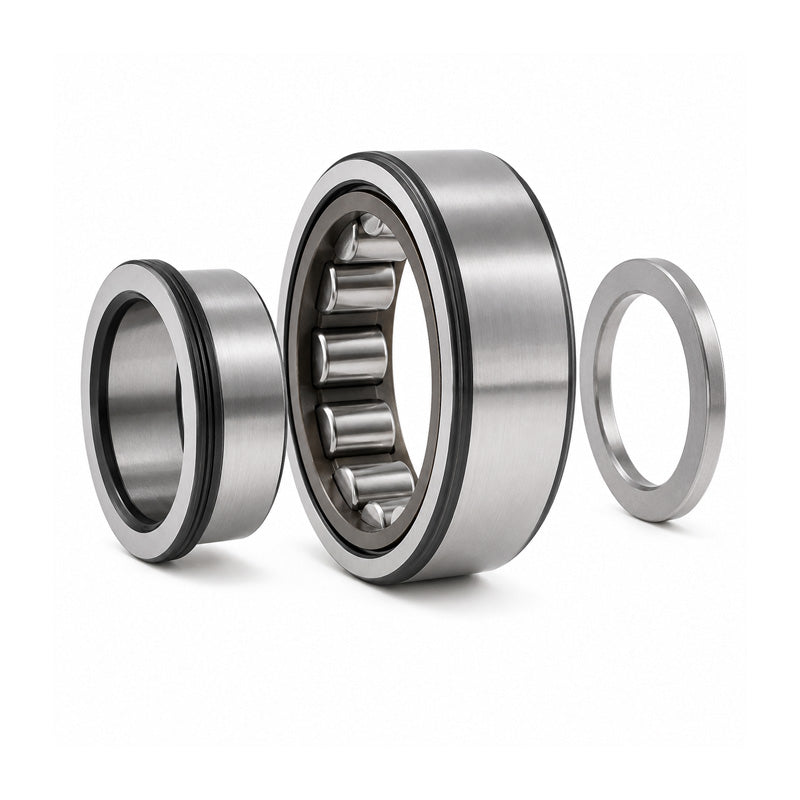

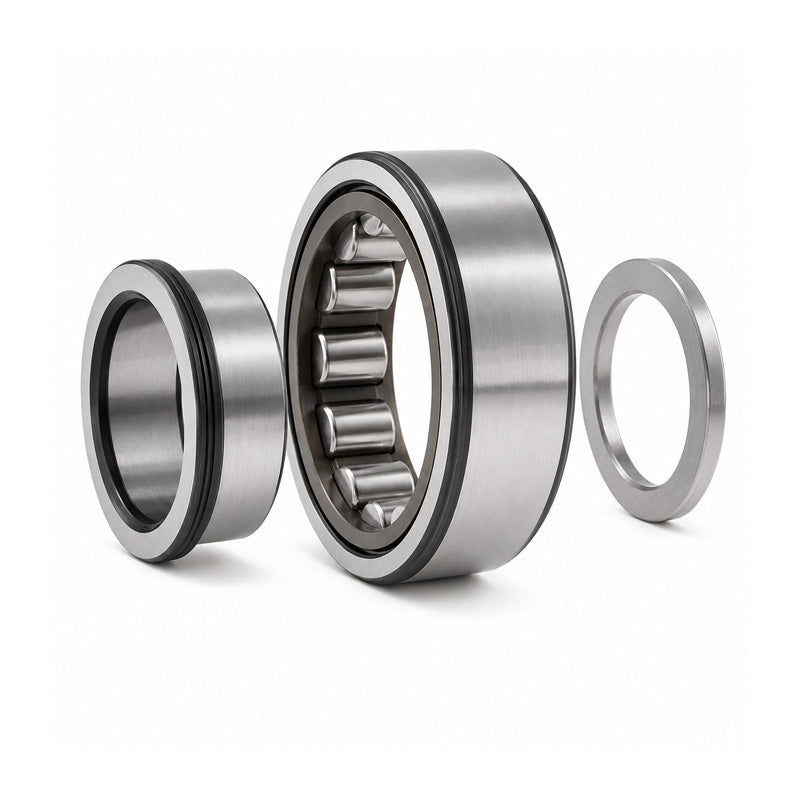

NUP2315-E-TVP2-C3 X-life Cylindrical Roller Bearing with Cage 75x160x55mm
NUP2315-E-TVP2-C3 X-life Cylindrical Roller Bearing with Cage 75x160x55mm
Out of stock
Description
Description
|
NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 160mm
- Width:
- 55mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 75 |
|---|---|
| D | 160 |
| B | 55 |
| r min | 2.1 |
| r1 min | 2.1 |
| E | 143 |
| F | 95 |
| D1 | 136.2 |
| d1 | 104.1 |
| B3 | 8.5 |
| da min | 87 |
| dc min | 106 |
| Da max | 148 |
| ra max | 2.1 |
| Dynamic load | 390000 N |
| Static load | 395000 N |
| Fatigue limit load | 67000 N |
| Limiting speed | 4000 rpm |
| Reference speed | 3600 rpm |
| Weight | 5.14 kg |
