SKU: NUP208ECP-SKF

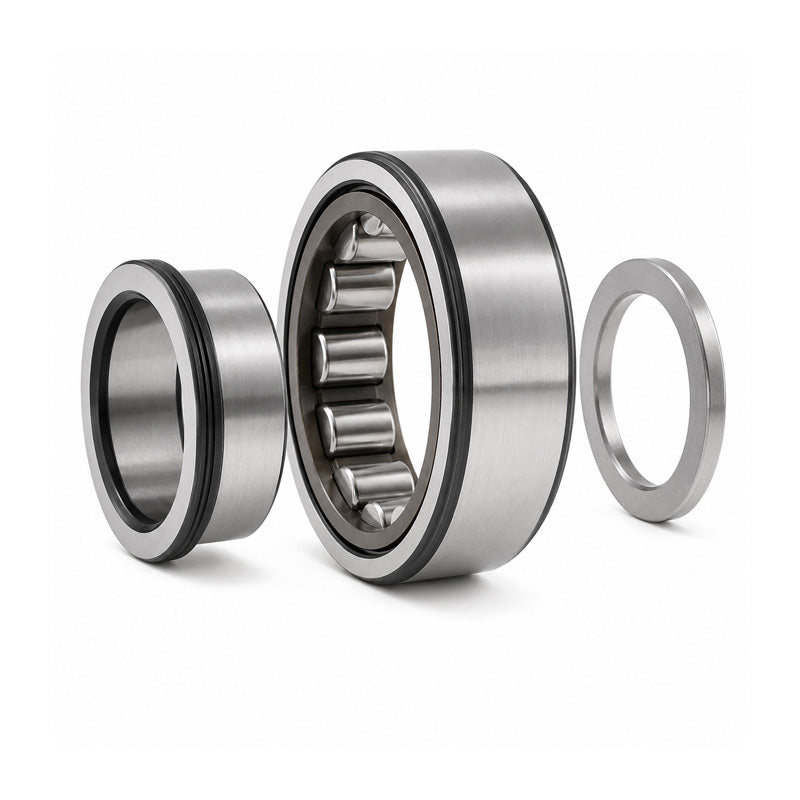

SKF NUP208ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 40x80x18mm
SKF NUP208ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 40x80x18mm
Regular price
$104.43
ex VAT
Regular price
Sale price
$104.43
ex VAT
In stock
Price Break
10+
$49.58
19+
$46.80
29+
$46.24
39+
$45.68
49+
$45.12
74+
$44.57
99+
$41.78
199+
$41.22
249+
$40.67
499+
$40.11
999+
$39.00
Quantity
Couldn't load pickup availability
Description
Description
|
SKF NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 18mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 40mm |
|---|---|
| D | 80mm |
| B | 18mm |
| Dynamic load C | 62 kN |
| Static load Co | 53 kN |
| Fatigue load limit Pu | 6.7 kN |
| Reference speed | 9500 rpm |
| Limiting speed | 11000 rpm |
| Weight | 0.4 kg |
| Alt cage | J.M.ML |
| d1 | 54mm |
| D1 | 67.9mm |
| F,E | 49.5mm |
| r1r2 min | 1.1mm |
| r3r4 min | 1.1mm |
| da min | 47mm |
| db | 56mm |
| Da max | 73mm |
| ra max | 1mm |
| rb max | 1mm |
| kr | 0.15 |
