• Budget NUKRE90A Crowned Cam Follower with Eccentric Stud 90x35x35 M30x1.5 Thread
1 1

SKU: NUKRE90A-EU

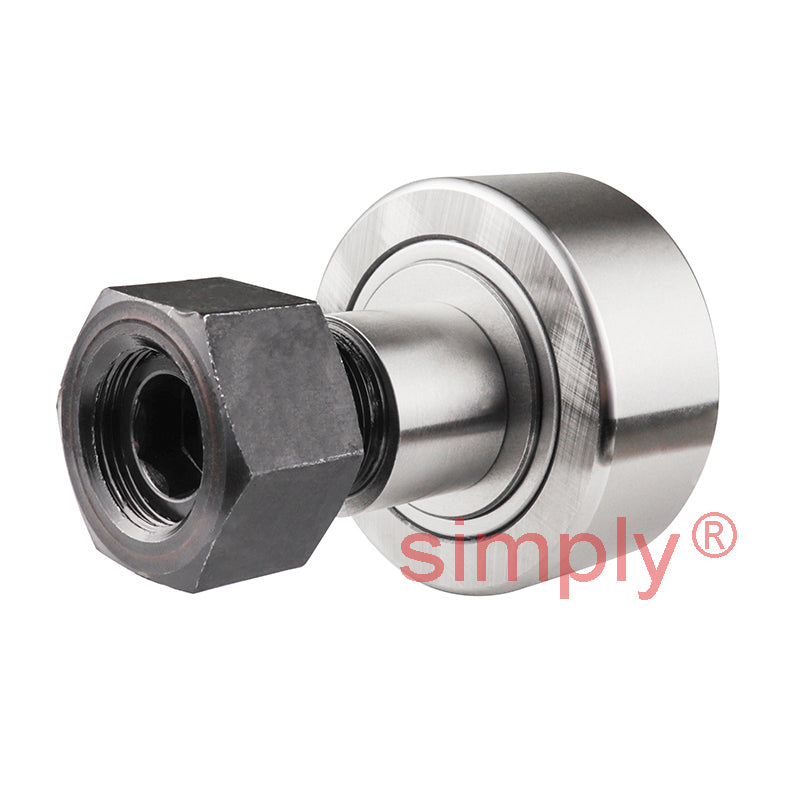

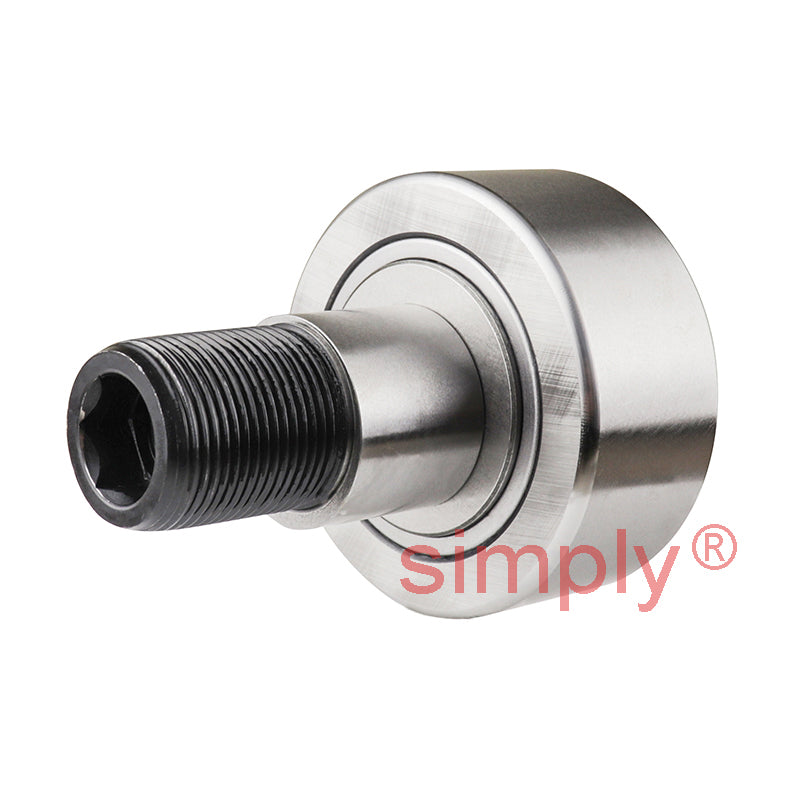

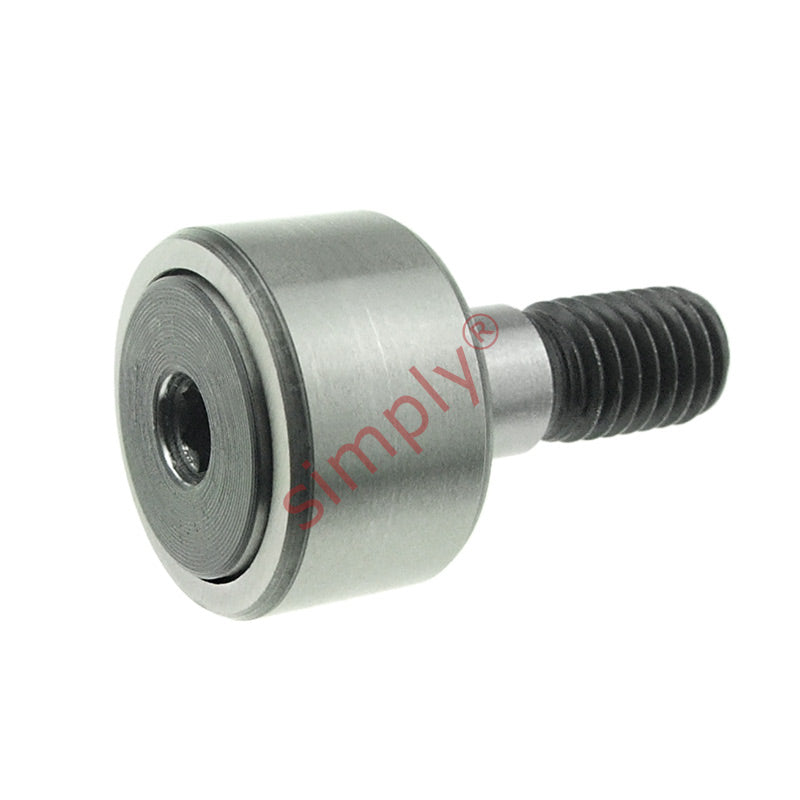

Budget NUKRE90A Crowned Cam Follower with Eccentric Stud 90x35x35 M30x1.5 Thread

Budget NUKRE90A Crowned Cam Follower with Eccentric Stud 90x35x35 M30x1.5 Thread
$251.18 ex VAT
$251.18 ex VAT
Sale Sold out

In stock

Price Break
10+ $119.11
19+ $112.42
29+ $111.08
39+ $109.74
49+ $108.40
74+ $107.06
99+ $100.37
199+ $99.04
249+ $97.70
499+ $96.36
999+ $93.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
WE6TGSD30Q
Brand / Quality:
EU Budget - Economy Quality
Outside Diameter:
90mm
Width:
35mm
Pitch:
M30x1.5
Technical
D 90mm
C 35mm
d (Stud Diameter) 35mm
B 100mm
B1 63mm
C1 1mm
d1 47mm
G M30x1.5
G1 32mm
r min 1.1mm
SW 14mm
Eccentric stud c 1.5mm
B3 29mm
Dynamic load 78100 N
Static load 102000 N
Fatigue load limit Pu 12700 N
Radial dynamic load 86500 N
Radial static load 125000 N
Speed rating 1800 rpm
Weight 2020 g
