SKU: NU412/C3-SKF

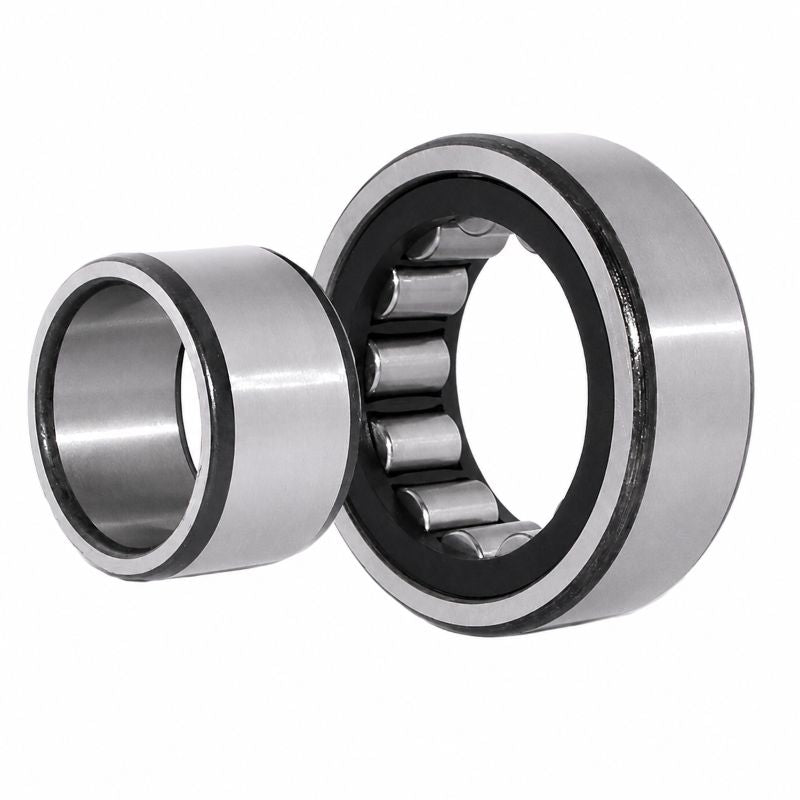

SKF NU412C3 Single Row Cylindrical Roller Bearing 60x150x35mm
SKF NU412C3 Single Row Cylindrical Roller Bearing 60x150x35mm
Out of stock
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 150mm
- Width:
- 35mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 60mm |
|---|---|
| D | 150mm |
| B | 35mm |
| Dynamic load C | 168 kN |
| Static load Co | 173 kN |
| Fatigue load limit Pu | 22 kN |
| Reference speed | 5000 rpm |
| Limiting speed | 6000 rpm |
| Weight | 3 kg |
| D1 | 117mm |
| F,E | 83mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| S | 2.5mm |
| da min | 74mm |
| da max | 80mm |
| db | 85mm |
| Da max | 136mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
