SKU: NU2356MA-SKF

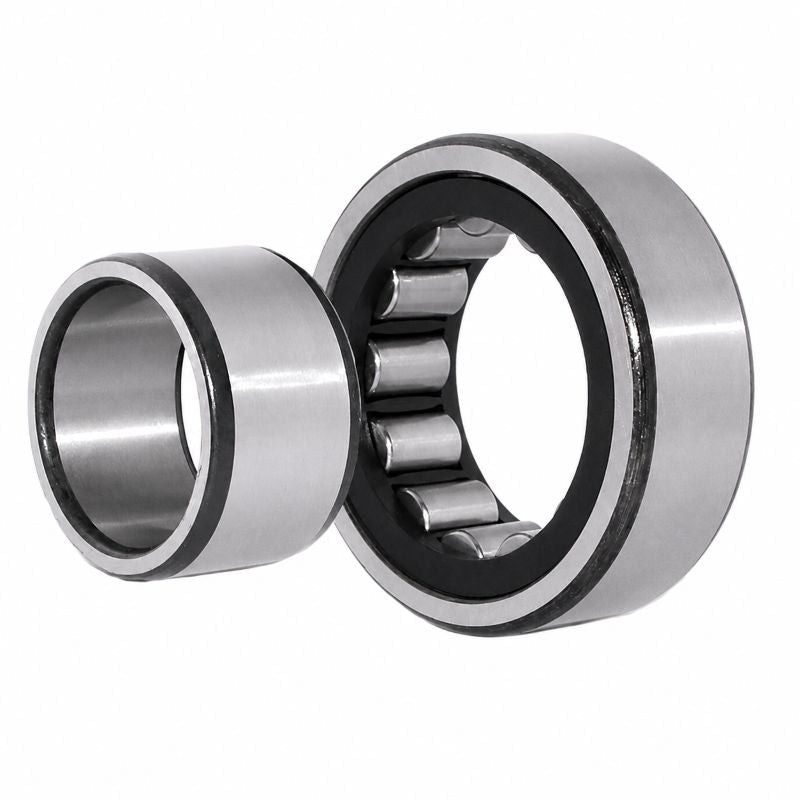

SKF NU2356MA Single Row Cylindrical Roller Bearing with Brass Cage 280x580x175mm
SKF NU2356MA Single Row Cylindrical Roller Bearing with Brass Cage 280x580x175mm
Out of stock
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 280mm
- Outside Diameter:
- 580mm
- Width:
- 175mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 280mm |
|---|---|
| D | 580mm |
| B | 175mm |
| Dynamic load C | 2700 kN |
| Static load Co | 4300 kN |
| Fatigue load limit Pu | 365 kN |
| Reference speed | 1000 rpm |
| Limiting speed | 1700 rpm |
| Weight | 230 kg |
| D1 | 467mm |
| F,E | 362mm |
| r1r2 min | 6mm |
| r3r4 min | 6mm |
| S | 6.6mm |
| da min | 306mm |
| da max | 347mm |
| db | 366mm |
| Da max | 554mm |
| ra max | 5mm |
| rb max | 5mm |
| kr | 0.25 |
