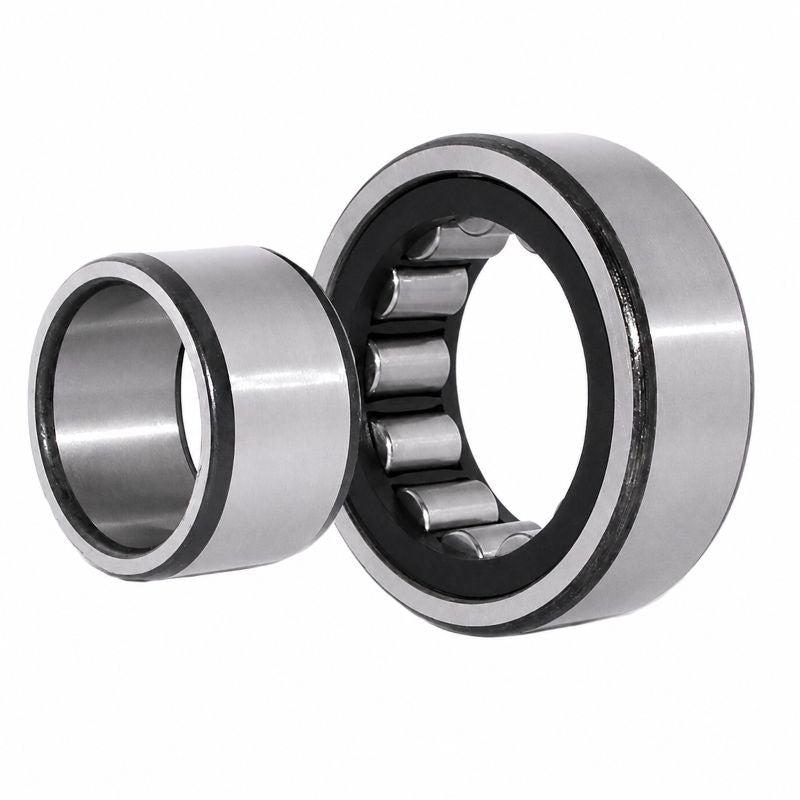

SKF NU10670ECMA Single Row Cylindrical Roller Bearing with Brass Cage 670x980x136mm
SKF NU10670ECMA Single Row Cylindrical Roller Bearing with Brass Cage 670x980x136mm
Out of stock
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 670mm
- Outside Diameter:
- 980mm
- Width:
- 136mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 670mm |
|---|---|
| D | 980mm |
| B | 136mm |
| Dynamic load C | 3740 kN |
| Static load Co | 6800 kN |
| Fatigue load limit Pu | 465 kN |
| Reference speed | 530 rpm |
| Limiting speed | 800 rpm |
| Weight | 350 kg |
| D1 | 891mm |
| F,E | 747mm |
| r1r2 min | 7.5mm |
| r3r4 min | 7.5mm |
| S | 7.9mm |
| da min | 698mm |
| da max | 736mm |
| db | 753mm |
| Da max | 952mm |
| ra max | 6mm |
| rb max | 6mm |
| kr | 0.1 |
