SKU: NU10630ECN2MA-EU

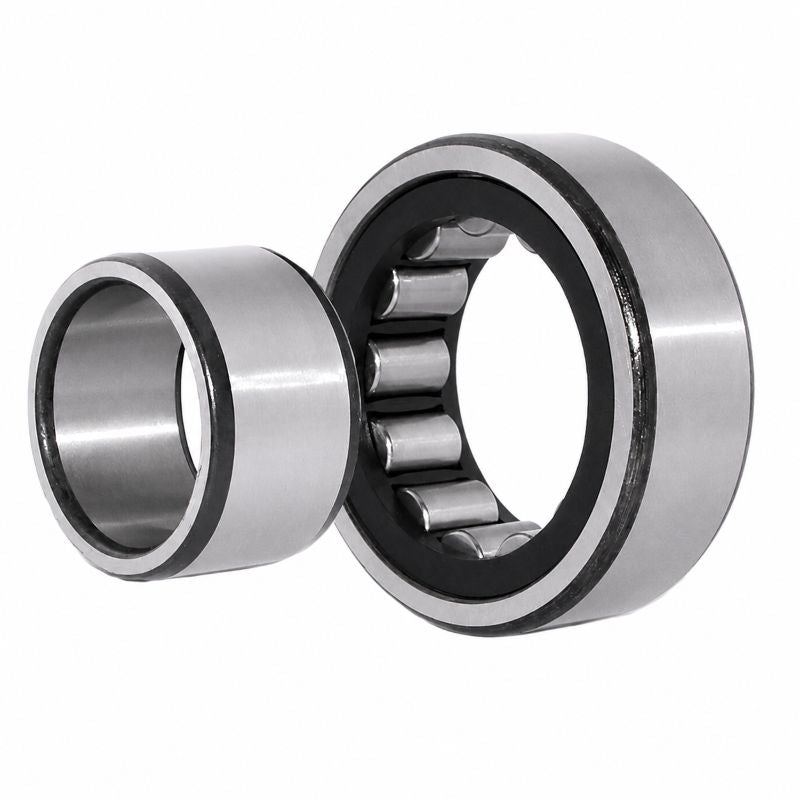

NU10630 Budget Single Row Cylindrical Roller Bearing 630x920x128mm
NU10630 Budget Single Row Cylindrical Roller Bearing 630x920x128mm
Out of stock
Description
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 630mm
- Outside Diameter:
- 920mm
- Width:
- 128mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 630mm |
|---|---|
| D | 920mm |
| B | 128mm |
| Dynamic load C | 3410 kN |
| Static load Co | 6200 kN |
| Fatigue load limit Pu | 430 kN |
| Reference speed | 630 rpm |
| Limiting speed | 1000 rpm |
| Weight | 285 kg |
| D1 | 837mm |
| F, E | 702mm |
| r1r2 min | 7.5mm |
| r3r4 min | 7.5mm |
| s | 6.2mm |
| da min | 658mm |
| da max | 691mm |
| db min | 706mm |
| Da max | 892mm |
| ra max | 6mm |
| rb max | 6mm |
| kr | 0.1 |
