SKU: NU1060MA-SKF

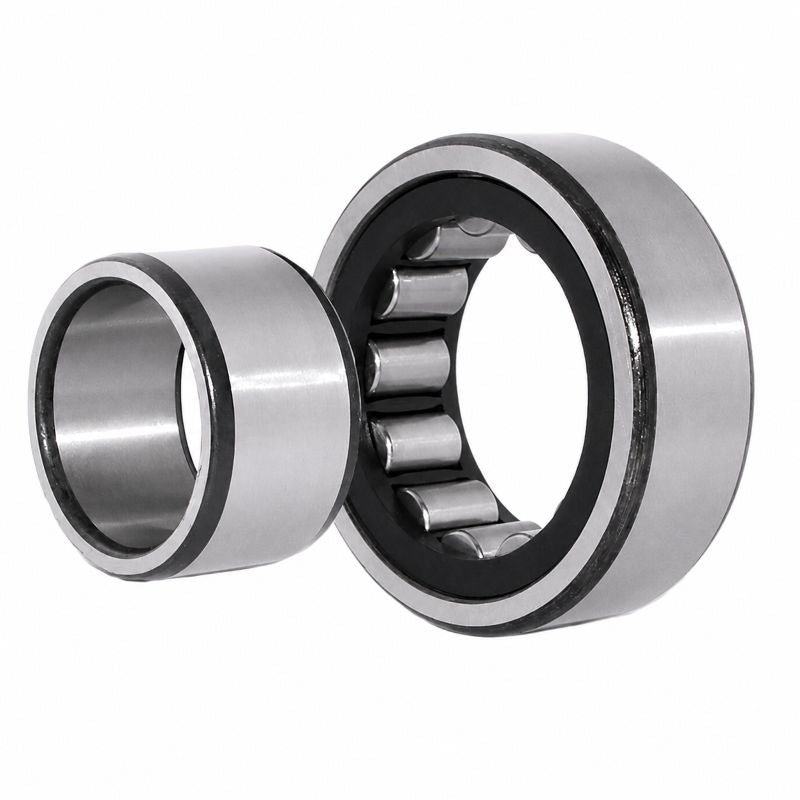

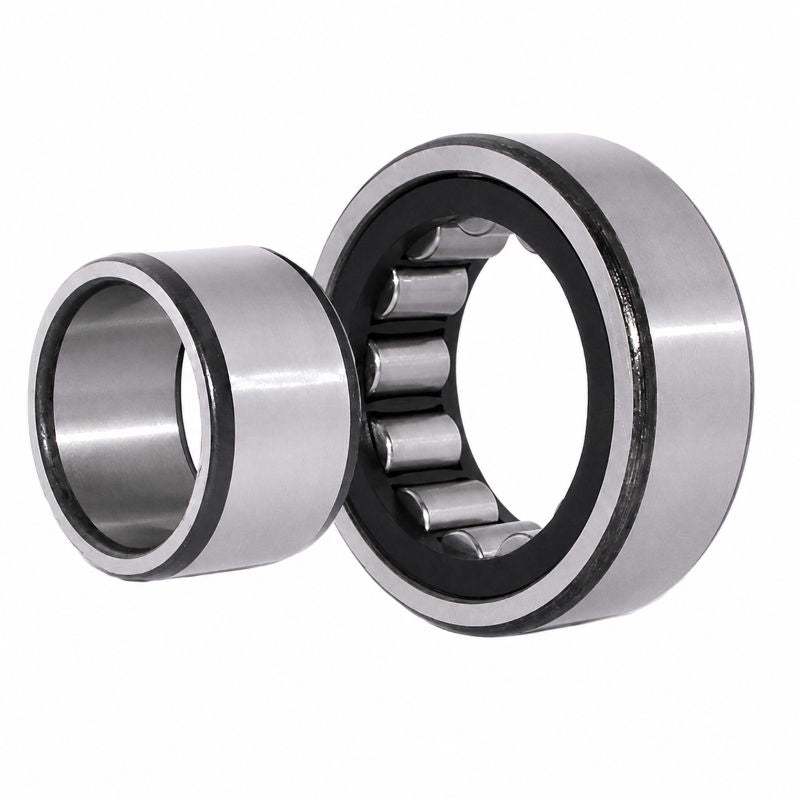

SKF NU1060MA Single Row Cylindrical Roller Bearing with Brass Cage 300x460x74mm
SKF NU1060MA Single Row Cylindrical Roller Bearing with Brass Cage 300x460x74mm
Out of stock
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 300mm
- Outside Diameter:
- 460mm
- Width:
- 74mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 300mm |
|---|---|
| D | 460mm |
| B | 74mm |
| Dynamic load C | 858 kN |
| Static load Co | 1370 kN |
| Fatigue load limit Pu | 129 kN |
| Reference speed | 1500 rpm |
| Limiting speed | 2000 rpm |
| Weight | 46.5 kg |
| d1 | 356mm |
| D1 | 402mm |
| F,E | 340mm |
| r1r2 min | 4mm |
| r3r4 min | 4mm |
| S | 9.7mm |
| da min | 317mm |
| da max | 335mm |
| db | 344mm |
| Da max | 443mm |
| ra max | 3mm |
| rb max | 3mm |
| kr | 0.1 |
| Angle ring | HJ1060 |
| Angle Ring Weight | 5.3 kg |
| B1 | 19mm |
| B2 | 36mm |
