SKU: NTA1828-TRA1828-MB

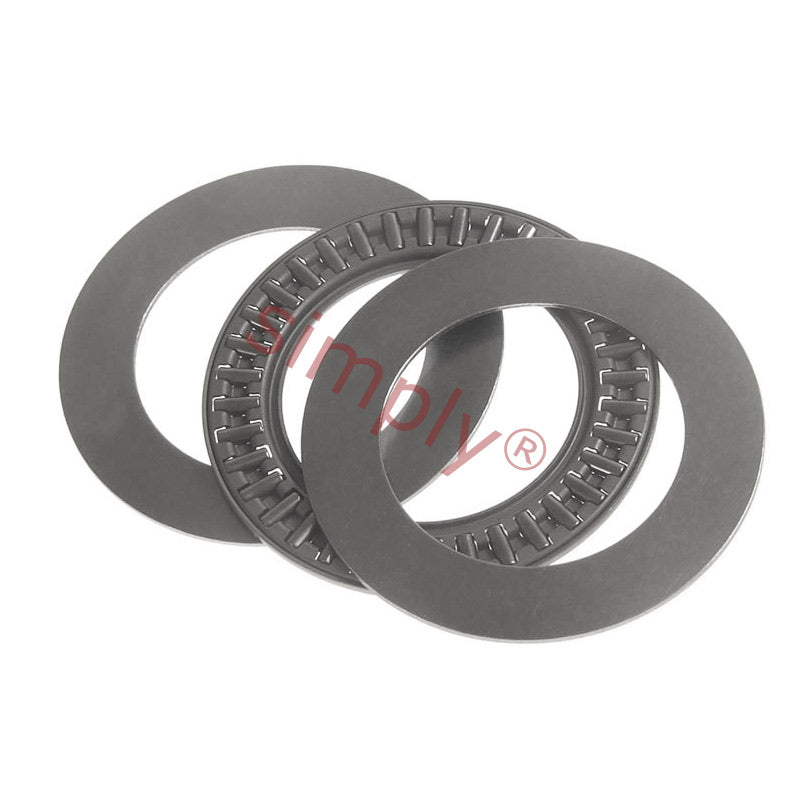

Major Brand NTA1828 Needle Roller Cage Thrust Assembly with 2 TRA1828 Washers 1.125x1.75x0.1406 inch
Major Brand NTA1828 Needle Roller Cage Thrust Assembly with 2 TRA1828 Washers 1.125x1.75x0.1406 inch
Equivalent to: NTC1828+TRA1828
Out of stock
Description
Description
|
NTA Imperial Series Needle Thrust Bearings Complete: Needle roller cage thrust assemblies complete with 2 TRA series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Outside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Width:
- 3.57mm = 0.141 (9/64) inch
Technical
Technical
| d | 1.125 inch |
|---|---|
| D | 1.75 inch |
| Eb | 0.0806 inch |
| Dw | 1.21 inch |
| dw | 1.64 inch |
| Dynamic load | 16.68 kN |
| Static load | 71.17 kN |
| Limiting speed | 9600 rpm |
| Weight | 0.008626 kg |
| Washer | Dimensions |
| d | 1.125 inch |
| d1 | 1.75 inch |
| h min | 0.03 inch |
| h max | 0.032 inch |
| Pilot min | 1.122 inch |
| Pilot max | 1.125 inch |
| Dia to clear washer | 1.781 inch |
| Weight | 0.013 lbs |
