SKU: NTA1625-TRA1625-MB

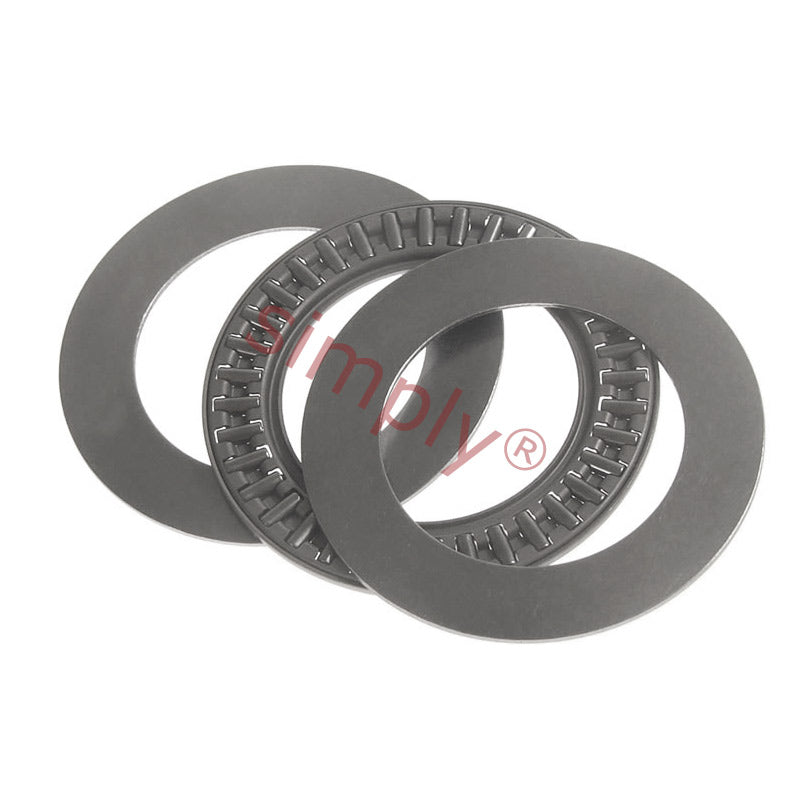

Major Brand NTA1625 Needle Roller Cage Thrust Assembly with 2 TRA1625 Washers 1x1.563x0.1406 inch
Major Brand NTA1625 Needle Roller Cage Thrust Assembly with 2 TRA1625 Washers 1x1.563x0.1406 inch
Equivalent to: NTC1625+TRA1625
Out of stock
Description
Description
|
NTA Imperial Series Needle Thrust Bearings Complete: Needle roller cage thrust assemblies complete with 2 TRA series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 39.69mm = 1.563 (1-9/16) inch
- Width:
- 3.57mm = 0.141 (9/64) inch
Technical
Technical
| d | 1 inch |
|---|---|
| D | 1.563 inch |
| Eb | 0.0806 inch |
| Dw | 1.09 inch |
| dw | 1.45 inch |
| Dynamic load | 13.83 kN |
| Static load | 53.82 kN |
| Limiting speed | 11000 rpm |
| Weight | 0.005902 kg |
| Washer | Dimensions |
| d | 1.000 inch |
| d1 | 1.562 inch |
| h min | 0.03 inch |
| h max | 0.032. inch |
| Pilot min | 0.997 inch |
| Pilot max | 1.000 inch |
| Dia to clear washer | 1.594 inch |
| Weight | 0.010 lbs |
