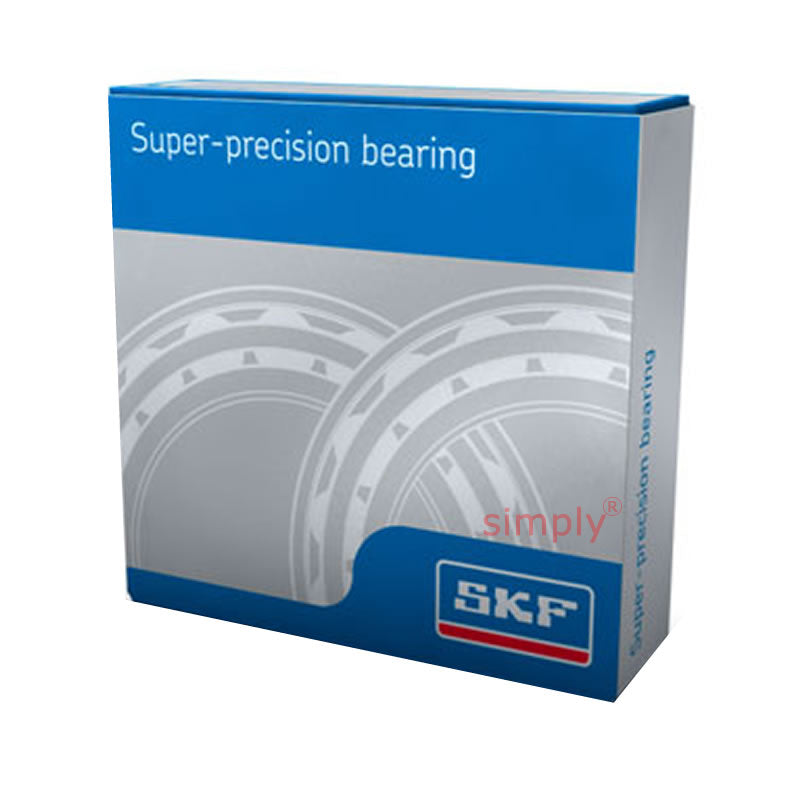

SKF NN3016KTNSP Super Precision Double Row Cylindrical Roller Spindle Bearing 80x125x34mm
In stock
Price Break
Couldn't load pickup availability
Description
SKF Super Precision Double Row Cylindrical Roller Bearings: Double row cylindrical roller bearings SKF super-precision double row cylindrical roller bearings are manufactured as standard in the NN 30 and NNU 49 series. Both series are available with either a cylindrical or a 1:12 tapered bore (designation suffix K). In machine tool applications, cylindrical roller bearings with a tapered bore are preferred over bearings with a cylindrical bore, because the taper enables more accurate adjustment of clearance or preload during mounting.
Benefits: High-speed capability, high radial load carrying capacity, high rigidity, low friction, low cross-sectional height.
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 125mm
- Width:
- 34mm
- Seals / Shields:
- None
- Style:
- Super Precision Cylindrical Roller Bearings
Technical
| --- | Bearing Dimensions |
|---|---|
| d | 80mm |
| D | 125mm |
| B | 34mm |
| --- | Speeds and loads |
| Dynamic load C | 119 Kn |
| Static load C<sub>o</sub> | 186 kn |
| Fatigue load P<sub>u</sub> | 22 kN |
| Speed in grease | 7000rpm |
| Speeed in oil | 8000rpm |
| Weight | 1.5kg |
| --- | Abutment and fillet dimensions |
| d<sub>1</sub> | 97mm |
| E | 113mm |
| r<sub>1 and 2 min</sub> | 1.1mm |
| r<sub>3 and 4 min</sub> | 0.6mm |
| S<sup>2</sup> | 2mm |
| d<sub>a</sub> min | 86.5mm |
| D<sub>a min</sub> | 114mm |
| D<sub>a max</sub> | 118.5mm |
| d<sub>n</sub> | 1mm |
| d<sub>n</sub> | 111.4mm |
| Reference grease quantity | 8.3 grams |
