SKU: NKIS35-MB

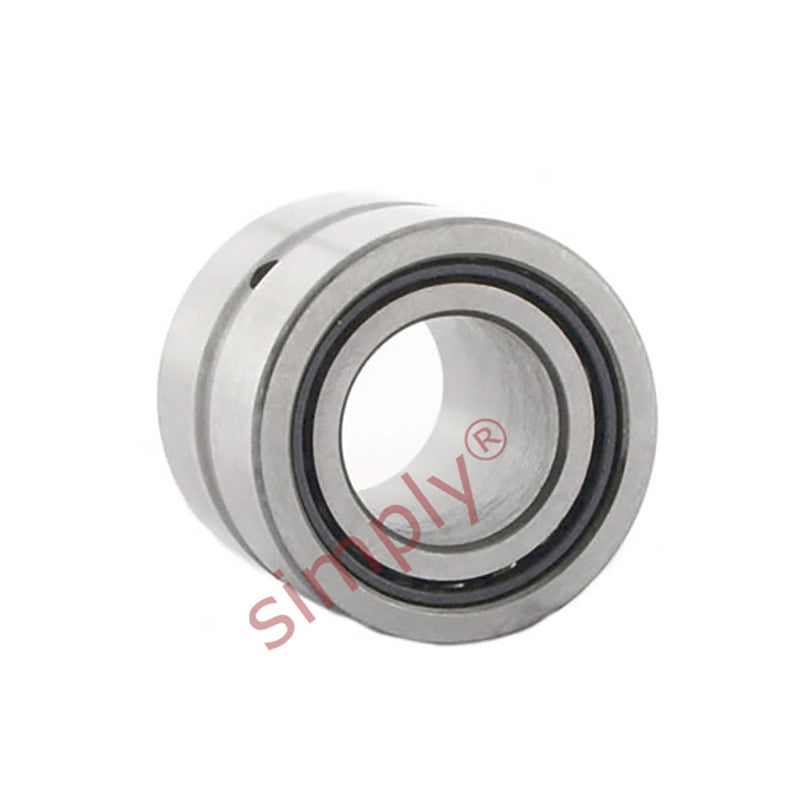

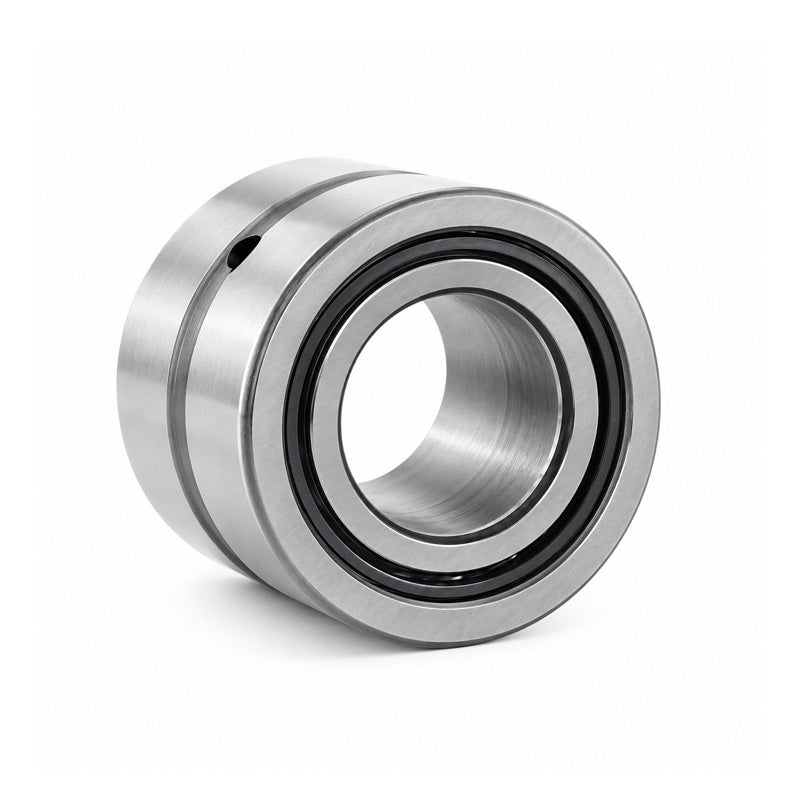

Major Brand NKIS35 Needle Roller Bearing With Shaft Sleeve 35x58x22mm
- Regular price
- $113.04 ex VAT
- Sale price
- $113.04
- Regular price
-
In stock
Quantity Price Breaks
10
$100.61
19
$94.95
29
$93.82
39
$92.69
49
$91.56
74
$90.43
99
$84.78
199
$83.65
249
$82.52
499
$81.39
999
$79.13
SKU:
NKIS35-MB
Major Brand NKIS35 Needle Roller Bearing With Shaft Sleeve 35x58x22mm
- Regular price
- $113.04 ex VAT
- Sale price
- $113.04
- Regular price
-
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
Technical
| d | = | 35mm |
| D | = | 58mm |
| B | = | 22mm |
| Dynamic load | = | 39100 N |
| Static load | = | 61000 N |
| Fatigue load limit Pu | = | 7800 N |
| Speed in grease | = | 6300 rpm |
| Speed in oil | = | 9000 rpm |
| F | = | 43mm |
| r1r2 | = | 0.6mm |
| S (axial disp) | = | 0.5mm |
| da min | = | 39mm |
| Da max | = | 54mm |
| ra max | = | 0.6mm |
