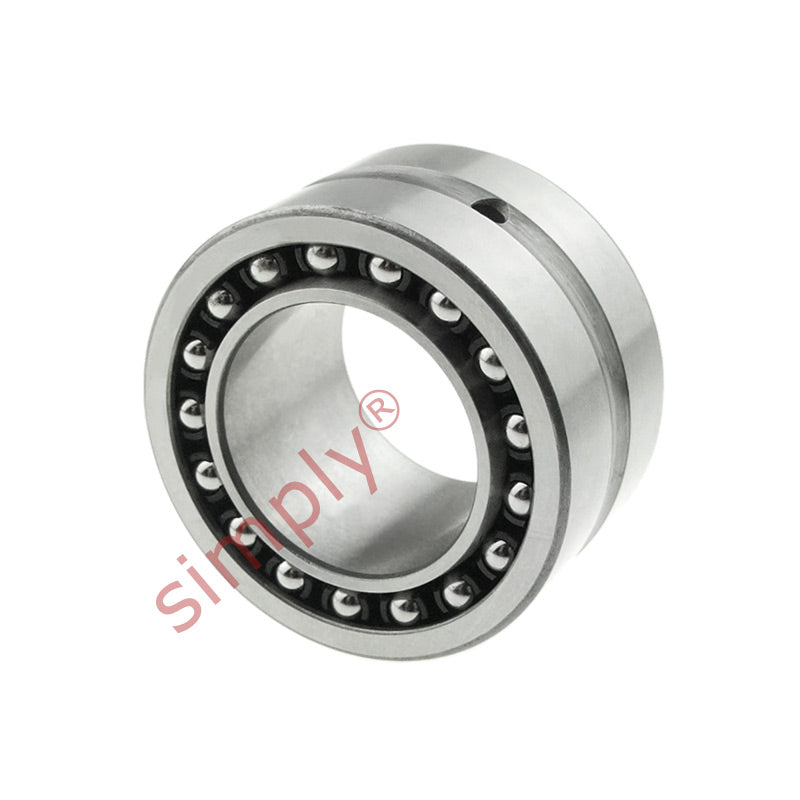

NKIA5905 Budget Needle Roller / Angular Contact Ball Bearing 25x42x23mm
NKIA5905 Budget Needle Roller / Angular Contact Ball Bearing 25x42x23mm
Regular price
$52.42
ex VAT
Regular price
Sale price
$52.42
ex VAT
In stock
Price Break
10+
$24.86
19+
$23.46
29+
$23.18
39+
$22.90
49+
$22.62
74+
$22.34
99+
$20.95
199+
$20.67
249+
$20.39
499+
$20.11
999+
$19.55
Quantity
Couldn't load pickup availability
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 23mm
Technical
Technical

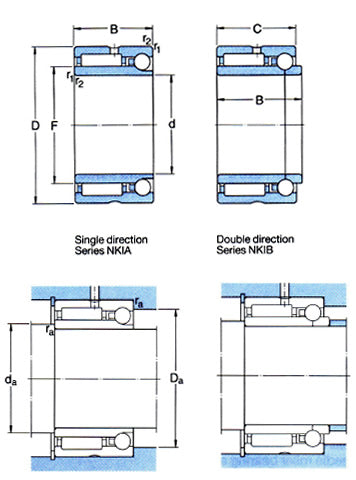

| d | 25mm |
|---|---|
| D | 42mm |
| B | 23mm |
| Radial dynamic load | 24200 N |
| Radial static load | 34500 N |
| Axial dynamic load | 4240 N |
| Axial static load | 5260 N |
| Fatigue load limit radial Pu | 4150 N |
| Fatigue load limit axial Pu | 224 N |
| Speed in grease | 8500 rpm |
| Speed in oil | 13000 rpm |
| F | 30mm |
| r1r2 | 0.3mm |
| da min | 27mm |
| Da max | 40mm |
| ra max | 0.3mm |
| Weight | 130 g |
