SKU: NKI50/25-MB

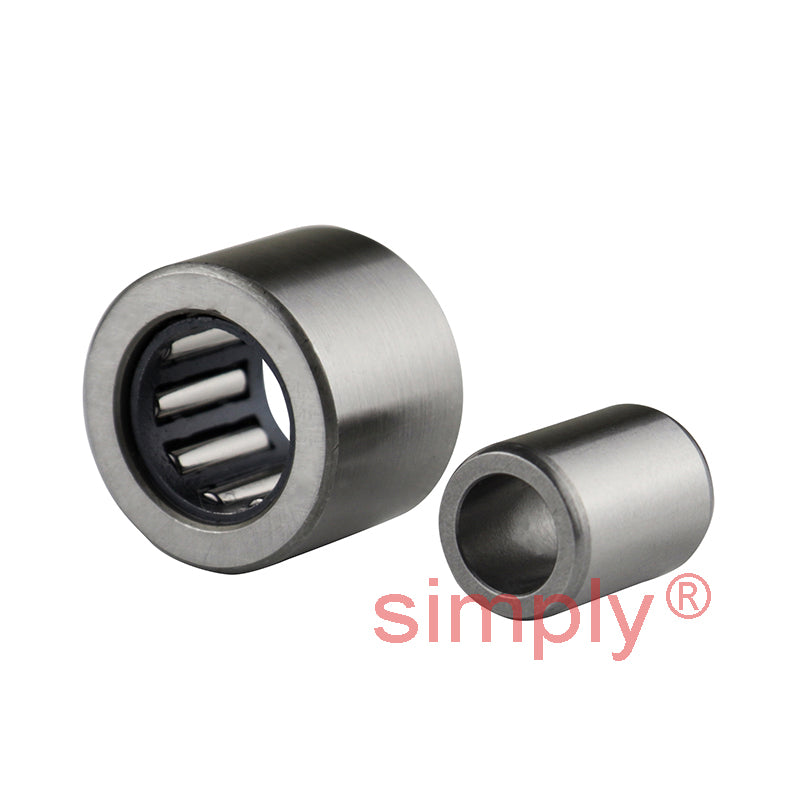

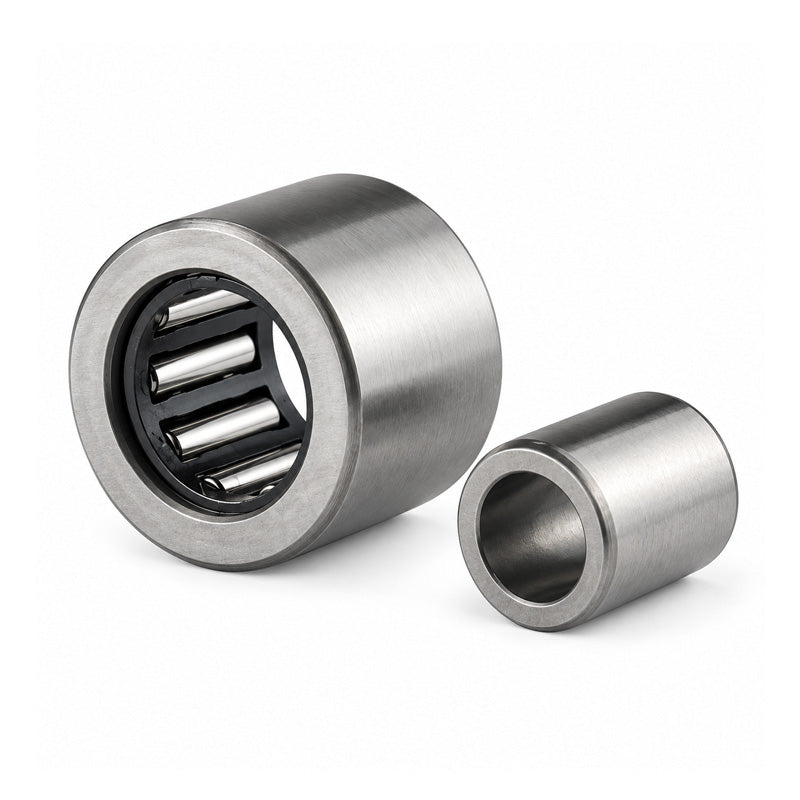

Major Brand NKI50/25 Needle Roller Bearing With Shaft Sleeve 50x68x25mm
- Regular price
- $82.96 ex VAT
- Sale price
- $82.96
- Regular price
-
In stock
Quantity Price Breaks
10
$73.83
19
$69.69
29
$68.86
39
$68.03
49
$67.20
74
$66.37
99
$62.22
199
$61.39
249
$60.56
499
$59.73
999
$58.07
SKU:
NKI50/25-MB
Major Brand NKI50/25 Needle Roller Bearing With Shaft Sleeve 50x68x25mm
- Regular price
- $82.96 ex VAT
- Sale price
- $82.96
- Regular price
-
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
Technical
| d | = | 50mm |
| D | = | 68mm |
| B | = | 25mm |
| Dynamic load | = | 40200 N |
| Static load | = | 88000 N |
| Fatigue load limit Pu | = | 11200 N |
| Speed in grease | = | 5300 rpm |
| Speed in oil | = | 7500 rpm |
| F | = | 55mm |
| r1r2 | = | 0.6mm |
| S (axial disp) | = | 1.5mm |
| da min | = | 54mm |
| Da max | = | 64mm |
| ra max | = | 0.6mm |
