SKU: NKI17/16-MB

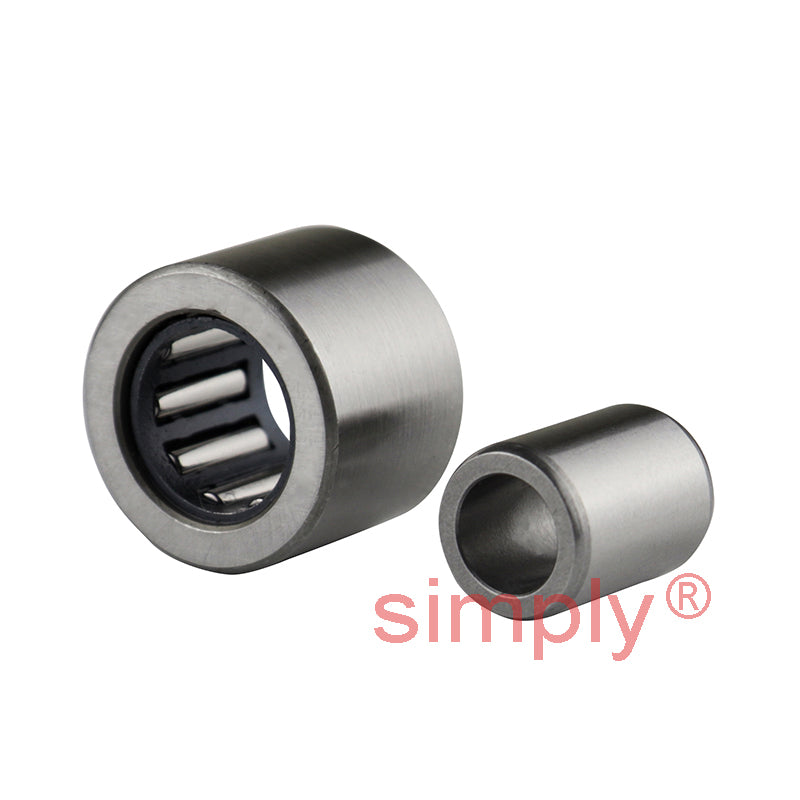

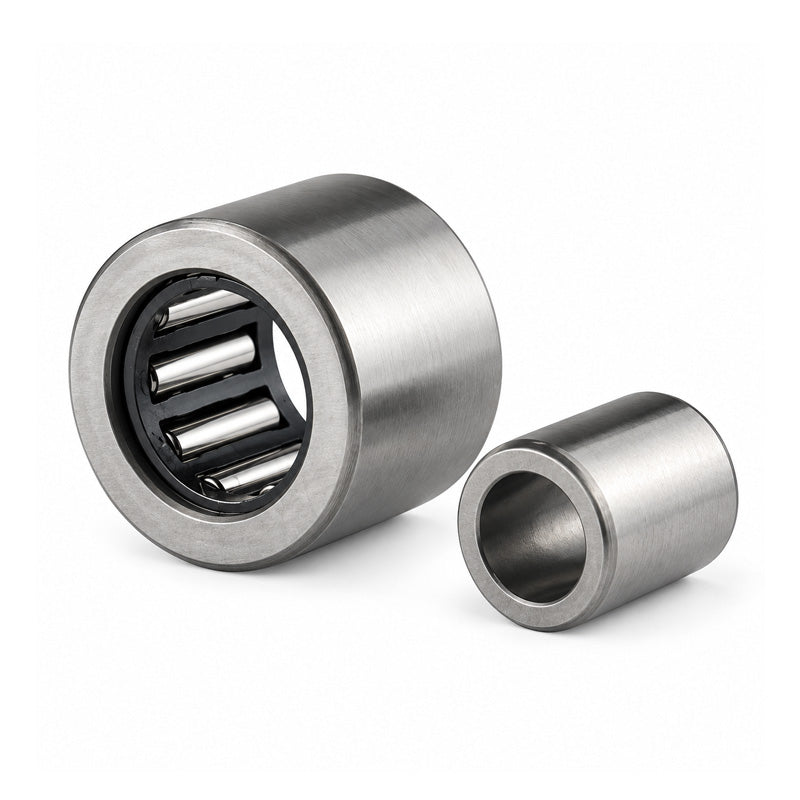

Major Brand NKI17/16 Needle Roller Bearing With Shaft Sleeve 17x29x16mm
- Regular price
- $44.90 ex VAT
- Sale price
- $44.90
- Regular price
-
In stock
Quantity Price Breaks
10
$39.96
19
$37.72
29
$37.27
39
$36.82
49
$36.37
74
$35.92
99
$33.68
199
$33.23
249
$32.78
499
$32.33
999
$31.43
SKU:
NKI17/16-MB
Major Brand NKI17/16 Needle Roller Bearing With Shaft Sleeve 17x29x16mm
- Regular price
- $44.90 ex VAT
- Sale price
- $44.90
- Regular price
-
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
Technical
| d | = | 17mm |
| D | = | 29mm |
| B | = | 16mm |
| Dynamic load | = | 13800 N |
| Static load | = | 20400 N |
| Fatigue load limit Pu | = | 2500 N |
| Speed in grease | = | 13000 rpm |
| Speed in oil | = | 19000 rpm |
| F | = | 21mm |
| r1r2 | = | 0.3mm |
| S (axial disp) | = | 0.5mm |
| da min | = | 19mm |
| Da max | = | 27mm |
| ra max | = | 0.3mm |
