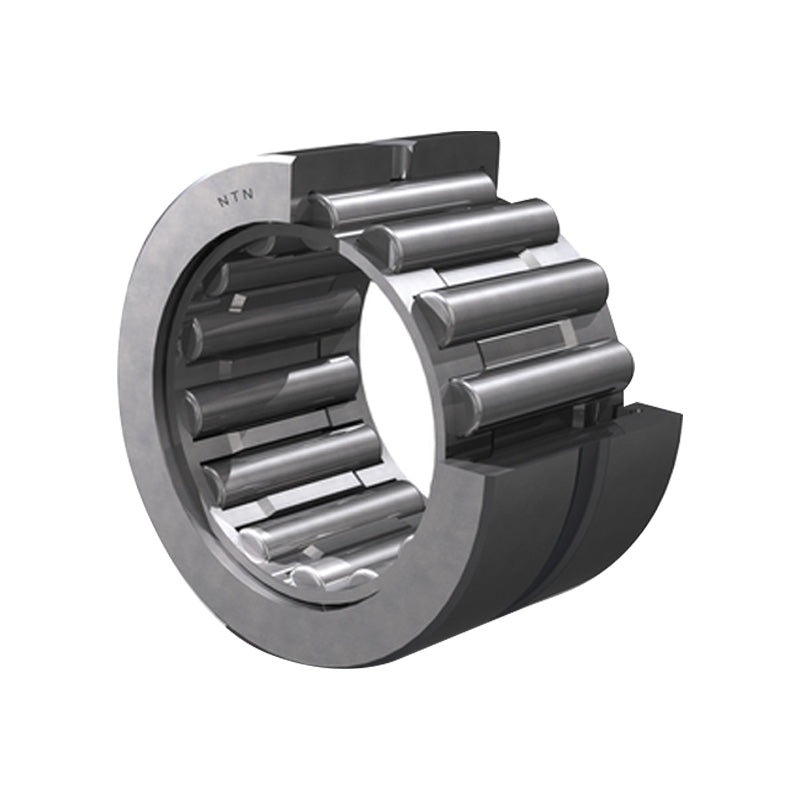

• NTN NK10/16 Machined Needle Roller Bearing no Shaft Sleeve 10x17x16mm
1 1

SKU: NK10/16-NTN

NTN NK10/16 Machined Needle Roller Bearing no Shaft Sleeve 10x17x16mm

NTN NK10/16 Machined Needle Roller Bearing no Shaft Sleeve 10x17x16mm
$16.54 ex VAT
$16.54 ex VAT
Sale Sold out

In stock

Price Break
3+ $7.84
4+ $7.40
9+ $7.31
19+ $7.22
49+ $7.14
99+ $7.05
499+ $6.61
999+ $6.52
1999+ $6.43
2999+ $6.34
4999+ $6.17

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
CIAH7HM5FO
Brand / Quality:
NTN - High Quality
Inside Diameter:
10mm
Outside Diameter:
17mm
Width:
16mm

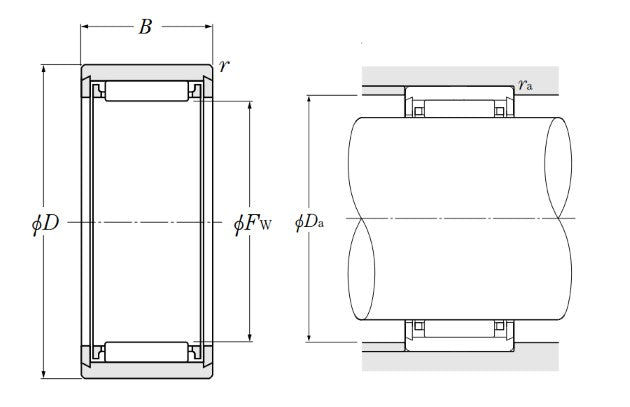

Technical
Fw - Under rollers diameter 10mm
D - Outside diameter 17mm
C - Width of bearing, drawn cup or outer ring 16mm
rs - Minimum fillet radius 0.3mm
Lubrication hole on outer ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 5.45 kN
C0r - Static load rating 6.45 kN
N - Grease lubrication limit speed 19000 tr/min
N - Oil lubrication limit speed 28000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 11.5mm
ras max - Maximum shaft & housing fillet radius 0.3mm
