SKU: NJ418-M1-C3

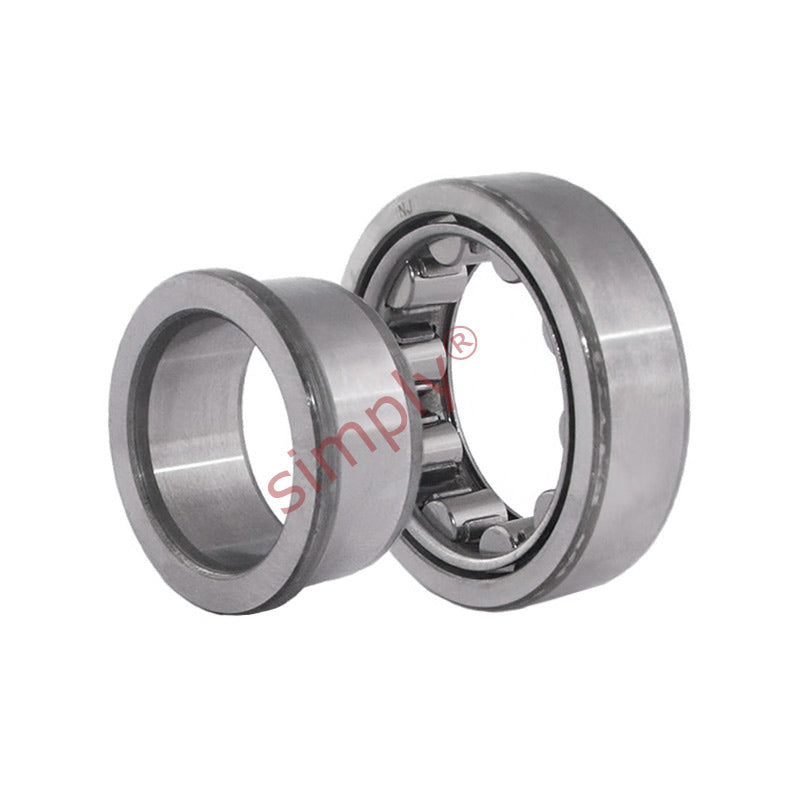

NJ418-M1-C3 X-life Cylindrical Roller Bearing with Cage 90x225x54mm
NJ418-M1-C3 X-life Cylindrical Roller Bearing with Cage 90x225x54mm
Out of stock
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 225mm
- Width:
- 54mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 90 |
|---|---|
| D | 225 |
| B | 54 |
| r min | 4 |
| r1 min | 4 |
| s | 5 |
| E | 191.5 |
| F | 123.5 |
| D1 | 179.7 |
| d1 | 136.8 |
| da min | 110 |
| da max | 122 |
| dc min | 139 |
| Da max | 205 |
| ra max | 3 |
| Dynamic load | 465000 N |
| Static load | 425000 N |
| Fatigue limit load | 54000 N |
| Limiting speed | 5000 rpm rpm |
| Weight | 11.8 kg |
