SKU: NJ415-M1-C3

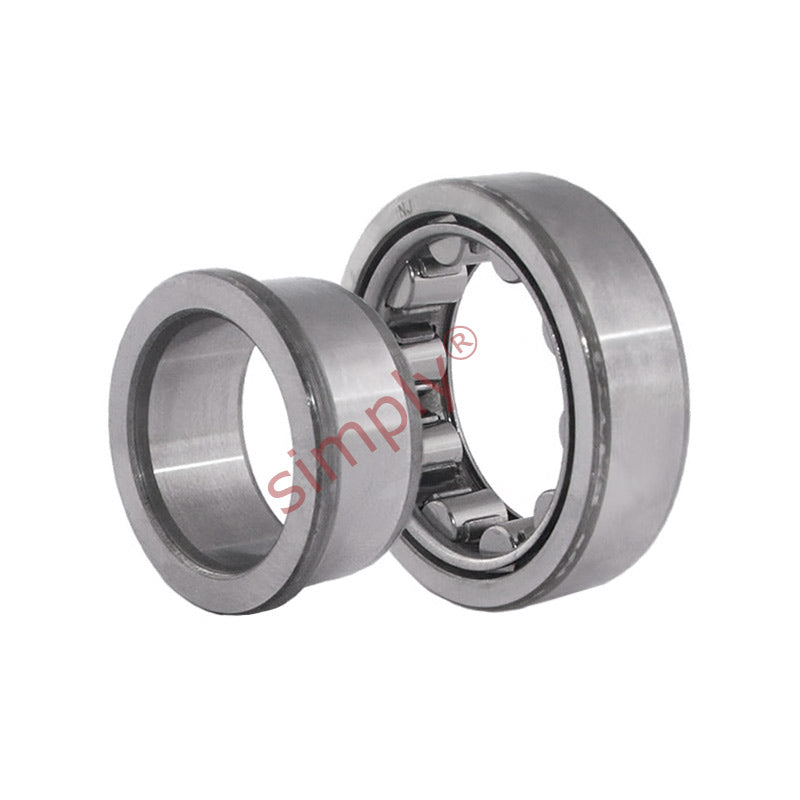

NJ415-M1-C3 X-life Cylindrical Roller Bearing with Cage 75x190x45mm
NJ415-M1-C3 X-life Cylindrical Roller Bearing with Cage 75x190x45mm
Out of stock
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 190mm
- Width:
- 45mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 75 |
|---|---|
| D | 190 |
| B | 45 |
| r min | 3 |
| r1 min | 3 |
| s | 4.5 |
| E | 160.5 |
| F | 104.5 |
| D1 | 150.7 |
| d1 | 115.8 |
| da min | 91 |
| da max | 103 |
| dc min | 118 |
| Da max | 174 |
| ra max | 2.5 |
| Dynamic load | 325000 N |
| Static load | 295000 N |
| Fatigue limit load | 46500 N |
| Limiting speed | 6000 rpm rpm |
| Weight | 7.21 kg |
