SKU: NJ410-M1-C3

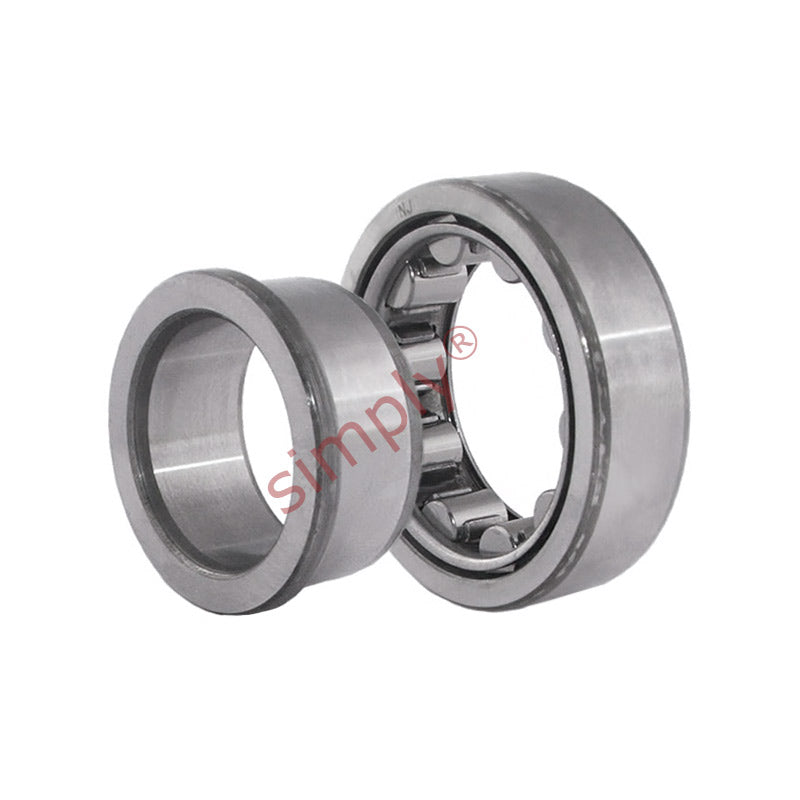

NJ410-M1-C3 X-life Cylindrical Roller Bearing with Cage 50x130x31mm
NJ410-M1-C3 X-life Cylindrical Roller Bearing with Cage 50x130x31mm
Out of stock
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 130mm
- Width:
- 31mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 50 |
|---|---|
| D | 130 |
| B | 31 |
| r min | 2.1 |
| r1 min | 2.1 |
| s | 3 |
| E | 110.8 |
| F | 70.8 |
| D1 | 104.3 |
| d1 | 78.6 |
| da min | 64 |
| da max | 69 |
| dc min | 81 |
| Da max | 116 |
| ra max | 2 |
| Dynamic load | 175000 N |
| Static load | 148000 N |
| Fatigue limit load | 20200 N |
| Limiting speed | 8500 rpm rpm |
| Weight | 2.36 kg |
