SKU: NJ344M-SKF

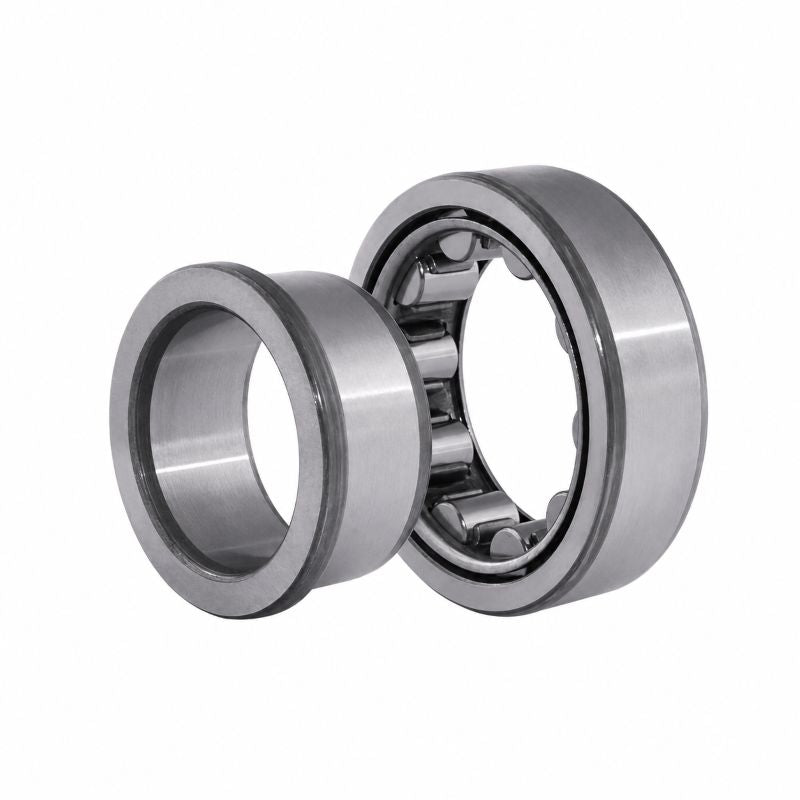

SKF NJ344M Single Row Cylindrical Roller Bearing with Brass Cage 220x460x88mm
SKF NJ344M Single Row Cylindrical Roller Bearing with Brass Cage 220x460x88mm
Out of stock
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 220mm
- Outside Diameter:
- 460mm
- Width:
- 88mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 220mm |
|---|---|
| D | 460mm |
| B | 88mm |
| Dynamic load C | 1210 kN |
| Static load Co | 1630 kN |
| Fatigue load limit Pu | 150 kN |
| Reference speed | 1500 rpm |
| Limiting speed | 1700 rpm |
| Weight | 73.5 kg |
| d1 | 307mm |
| D1 | 371mm |
| F,E | 284mm |
| r1r2 min | 5mm |
| r3r4 min | 5mm |
| S | 5.2mm |
| da min | 240mm |
| da max | 277mm |
| db | 311mm |
| Da max | 440mm |
| ra max | 4mm |
| rb max | 4mm |
| kr | 0.15 |
