SKU: NJ2332ECMA/C3-SKF

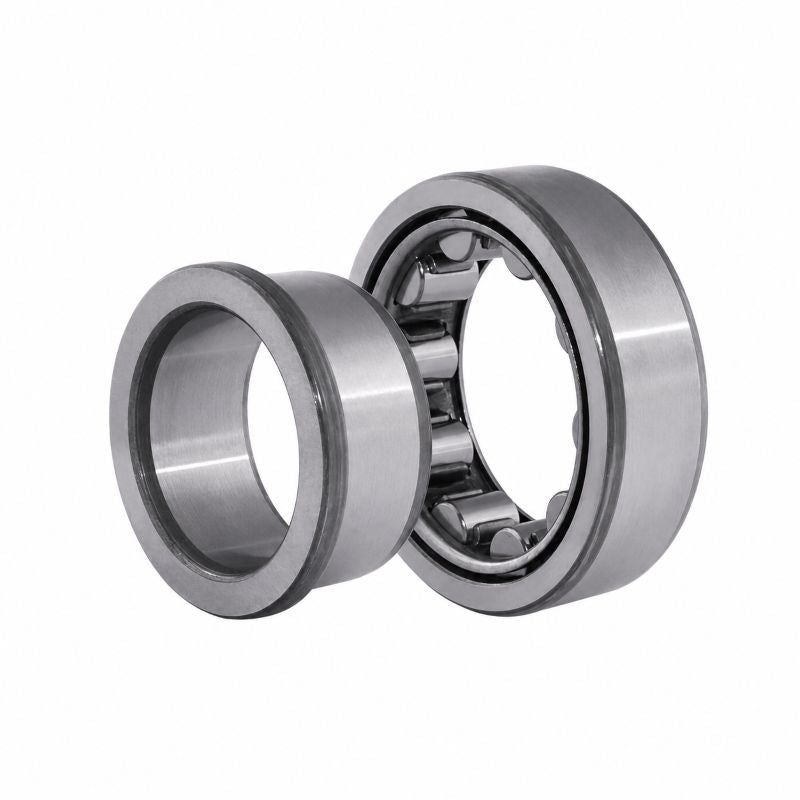

SKF NJ2332ECMAC3 Single Row Cylindrical Roller Bearing with Brass Cage 160x340x114mm
SKF NJ2332ECMAC3 Single Row Cylindrical Roller Bearing with Brass Cage 160x340x114mm
Out of stock
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 160mm
- Outside Diameter:
- 340mm
- Width:
- 114mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 160mm |
|---|---|
| D | 340mm |
| B | 114mm |
| Dynamic load C | 1250 kN |
| Static load Co | 1730 kN |
| Fatigue load limit Pu | 173 kN |
| Reference speed | 1800 rpm |
| Limiting speed | 2800 rpm |
| Weight | 53.5 kg |
| d1 | 221mm |
| D1 | 286mm |
| F,E | 204mm |
| r1r2 min | 4mm |
| r3r4 min | 4mm |
| S | 11mm |
| da min | 177mm |
| da max | 200mm |
| db | 225mm |
| Da max | 323mm |
| ra max | 3mm |
| rb max | 3mm |
| kr | 0.25 |
