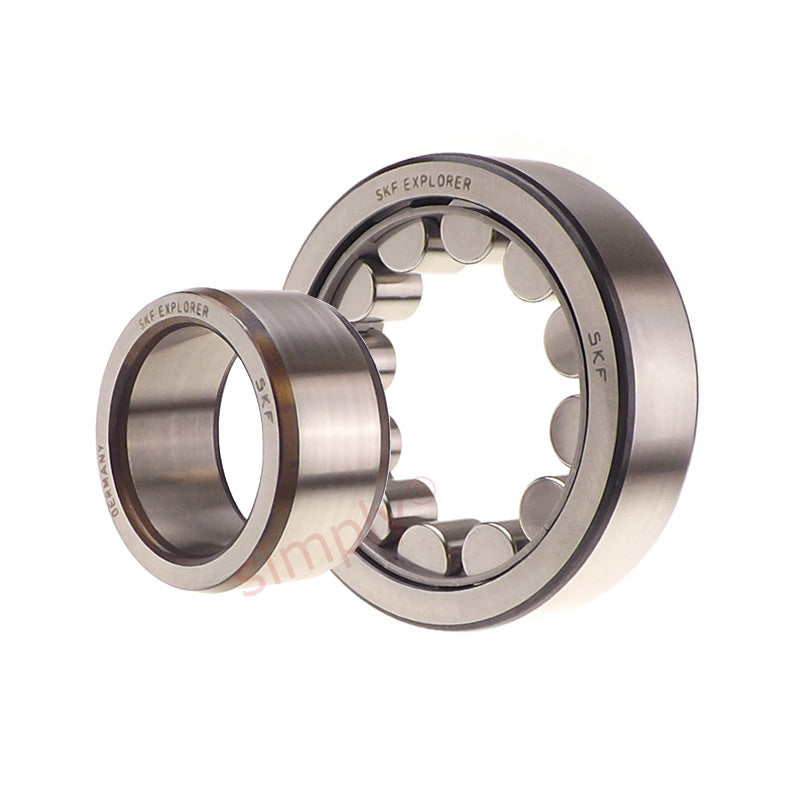

• SKF NJ2224ECJC3 Single Row Cylindrical Roller Bearing with Pressed Steel Cage 120x215x58mm
1 1

SKU: NJ2224ECJ/C3-SKF

SKF NJ2224ECJC3 Single Row Cylindrical Roller Bearing with Pressed Steel Cage 120x215x58mm

SKF NJ2224ECJC3 Single Row Cylindrical Roller Bearing with Pressed Steel Cage 120x215x58mm
$1,431.88 ex VAT
$1,431.88 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SKF - High Quality
Inside Diameter:
120mm
Outside Diameter:
215mm
Width:
58mm
Seals / Shields:
None
Clearance:
C3
Technical
d 120mm
D 215mm
B 58mm
Dynamic load C 520 kN
Static load Co 630 kN
Fatigue load limit Pu 72 kN
Reference speed 3400 rpm
Limiting speed 3600 rpm
Weight 8.5 kg
Alt cage J.M.ML
d1 153mm
D1 188mm
F,E 143.5mm
r1r2 min 2.1mm
r3r4 min 2.1mm
S 3.8mm
da min 132mm
da max 140mm
db 156mm
Da max 203mm
ra max 2mm
rb max 2mm
kr 0.2
Angle ring HJ2224EC
Angle ring weight 0.74 kg
B1 11mm
B2 20mm
