SKU: NJ2212ECP-SKF

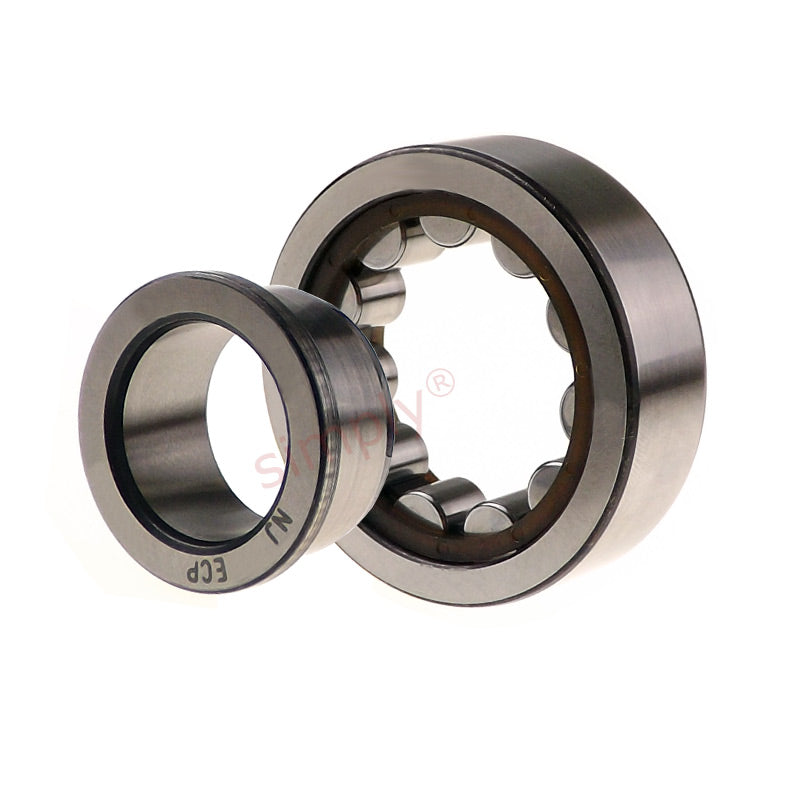

SKF NJ2212ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 60x110x28mm
SKF NJ2212ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 60x110x28mm
Regular price
$181.09
ex VAT
Regular price
Sale price
$181.09
ex VAT
In stock
Price Break
10+
$85.98
19+
$81.15
29+
$80.19
39+
$79.22
49+
$78.25
74+
$77.29
99+
$72.46
199+
$71.49
249+
$70.53
499+
$69.56
999+
$67.63
Quantity
Couldn't load pickup availability
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 28mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| B | 28mm |
| Dynamic load C | 146 kN |
| Static load Co | 153 kN |
| Fatigue load limit Pu | 20 kN |
| Reference speed | 6700 rpm |
| Limiting speed | 7500 rpm |
| Weight | 1.1 kg |
| Alt cage | J.M.ML |
| d1 | 77.5mm |
| D1 | 95.7mm |
| F,E | 72mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| S | 1.4mm |
| da min | 69mm |
| da max | 70mm |
| db | 80mm |
| Da max | 101mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.2 |
| Angle ring | HJ212EC |
| Angle Ring Weight | 0.1 kg |
| B1 | 6mm |
| B2 | 10mm |
