SKU: NJ219ECP-SKF

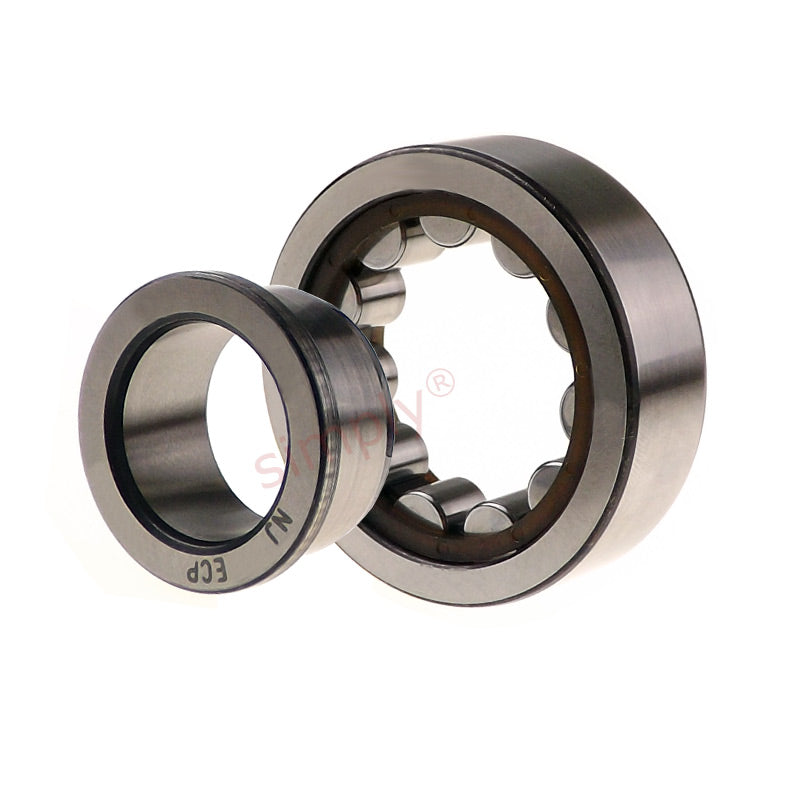

SKF NJ219ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 95x170x32mm
SKF NJ219ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 95x170x32mm
Regular price
$345.63
ex VAT
Regular price
Sale price
$345.63
ex VAT
In stock
Price Break
10+
$164.11
19+
$154.89
29+
$153.04
39+
$151.20
49+
$149.36
74+
$147.51
99+
$138.29
199+
$136.45
249+
$134.60
499+
$132.76
999+
$129.07
Quantity
Couldn't load pickup availability
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 170mm
- Width:
- 32mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 95mm |
|---|---|
| D | 170mm |
| B | 32mm |
| Dynamic load C | 255 kN |
| Static load Co | 265 kN |
| Fatigue load limit Pu | 32.5 kN |
| Reference speed | 4300 rpm |
| Limiting speed | 4800 rpm |
| Weight | 2.9 kg |
| Alt cage | J.M.ML |
| d1 | 120mm |
| D1 | 149mm |
| F,E | 112.5mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| S | 1.7mm |
| da min | 107mm |
| da max | 110mm |
| db | 123mm |
| Da max | 158mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
| Angle ring | HJ219EC |
| Angle Ring Weight | 0.33 kg |
| B1 | 9mm |
| B2 | 14mm |
