SKU: NCF3080CV-EU

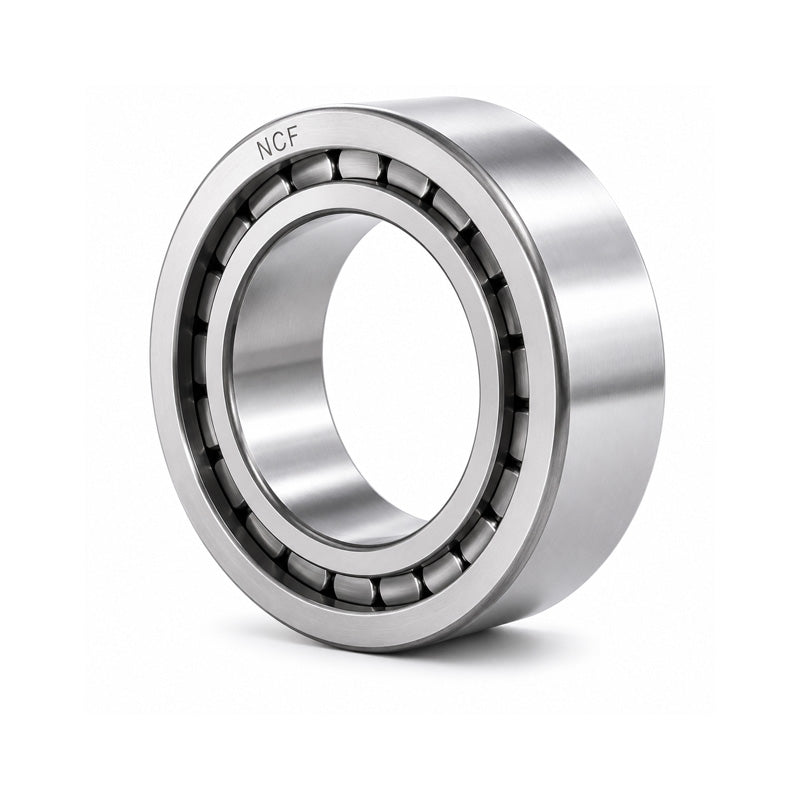

NCF3080CV Budget Single Row Cylindrical Roller Bearing 400x600x148mm
NCF3080CV Budget Single Row Cylindrical Roller Bearing 400x600x148mm
Out of stock
Description
Description
|
NCF Series Single Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. Being of full complement design they have the maximum number of rollers and can tolerate heavy radial loads and tolerate small axial displacements from shaft expansion within the bearing Benefits:Tolerate axial load in one direction, none separable construction |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 400mm
- Outside Diameter:
- 600mm
- Width:
- 148mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 400mm |
|---|---|
| D | 600mm |
| B | 148mm |
| Dynamic load C | 2970 kN |
| Static load Co | 5500 kN |
| Fatigue load limit Pu | 450 kN |
| Reference speed | 450 rpm |
| Limiting speed | 560 rpm |
| Weight | 145 kg |
| d1 | 460mm |
| D1 | 540mm |
| E, F | 558mm |
| r1r2 min | 5mm |
| r3r4 min | 5mm |
| s | 14mm |
| da min | 418mm |
| das | 449mm |
| Da max | 582mm |
| Db max | 582mm |
| ra max | 4mm |
| rb max | 4mm |
