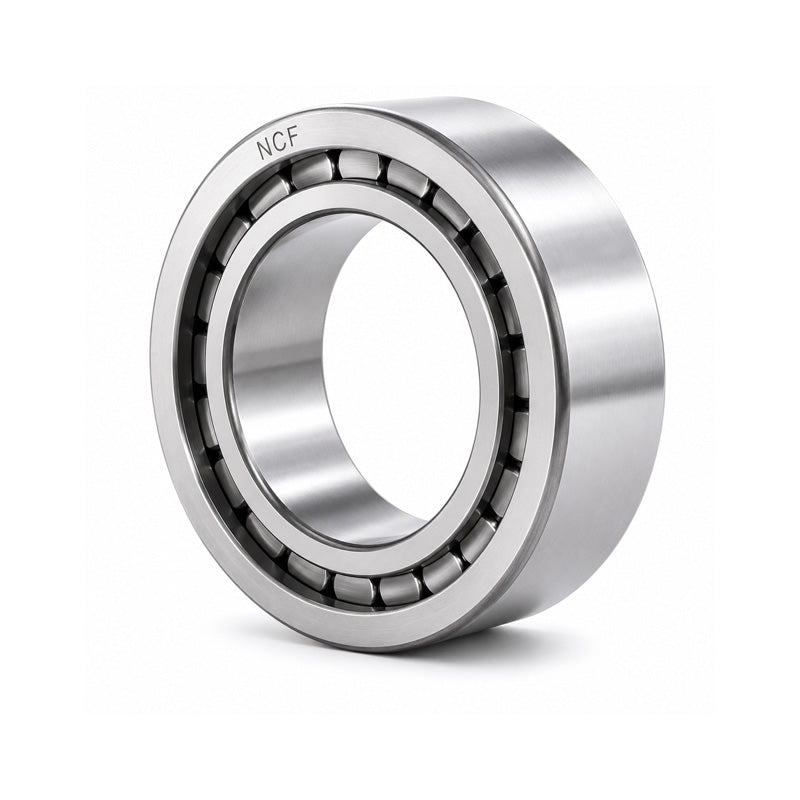

SKF NCF30560V Single Row Cylindrical Roller Bearing 560x820x195mm
SKF NCF30560V Single Row Cylindrical Roller Bearing 560x820x195mm
Out of stock
Description
Description
|
SKF NCF Series Single Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. Being of full complement design they have the maximum number of rollers and can tolerate heavy radial loads and tolerate small axial displacements from shaft expansion within the bearing. Benefits: Tolerate axial load in one direction, none separable construction |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 560mm
- Outside Diameter:
- 820mm
- Width:
- 195mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 560mm |
|---|---|
| D | 820mm |
| B | 195mm |
| Dynamic load C | 5830 kN |
| Static load Co | 11800 kN |
| Fatigue load limit Pu | 865 kN |
| Reference speed | 300 rpm |
| Limiting speed | 380 rpm |
| Weight | 345 kg |
| d1 | 642mm |
| D1 | 738mm |
| E/F | 770mm |
| r1r2 min | 6mm |
| r3r4 min | 6mm |
| S | 16mm |
| da min | 583mm |
| das | 626mm |
| Da max | 797mm |
| Db max | 797mm |
| ra max | 5mm |
| rb max | 5mm |
