SKU: NAX.1023

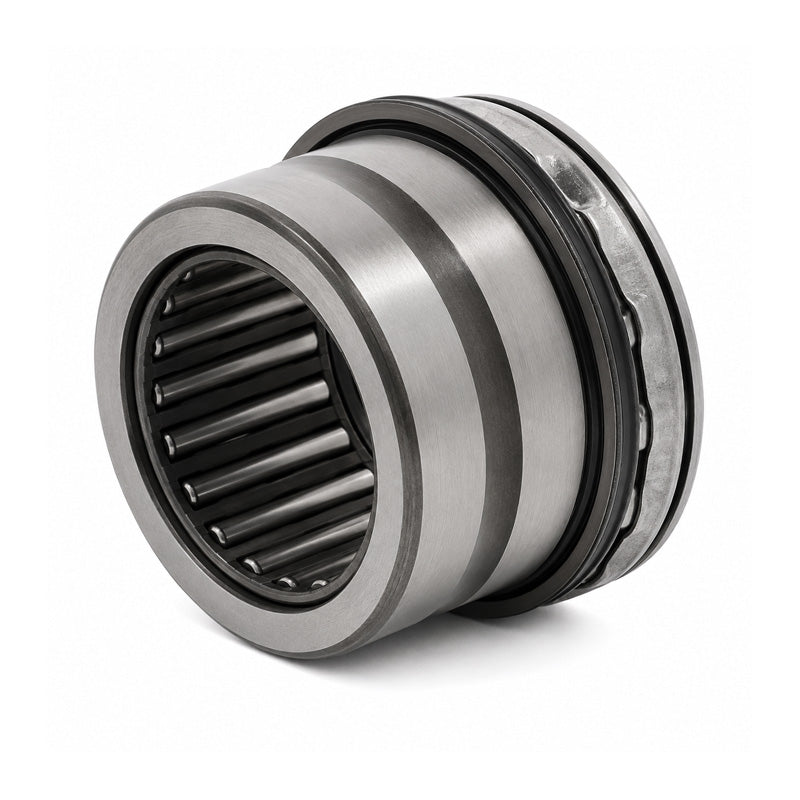

NAX1023 Needle Roller With Thrust Ball Bearing 10x25x23mm

Name: NAX1023 Needle Roller With Thrust Ball Bearing 10x25x23mm
Brand: IKO
SKU: NAX.1023
Price: 40.28 CAD
Availability: InStock

$40.28 ex VAT

Sale Sold out

In stock

Price Break

10+ $19.06

20+ $17.99

30+ $17.78

40+ $17.56

50+ $17.35

75+ $17.14

100+ $16.07

200+ $15.85

250+ $15.64

500+ $15.42

1000+ $14.99

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

IKO NAX Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually.
Benefits: High thrust loading, separable, easily mounted

Brand / Quality:: IKO - High Quality
Inside Diameter:: 10mm
Outside Diameter:: 25mm
Length:: 23mm

Technical

Fw	10mm
D	19mm
D1	25mm
L	23mm
H	9mm
l1	6.5mm
rs min	0.3mm
di	10mm
da Min	18mm
Dynamic load	8230 N
Axial dynamic load	10000 N
Static load	9190 N
Axial static load	11100 N
Allowable Rotational Speed	9500rpm
Weight	38.5g
