SKU: NA4901.2RS-MB

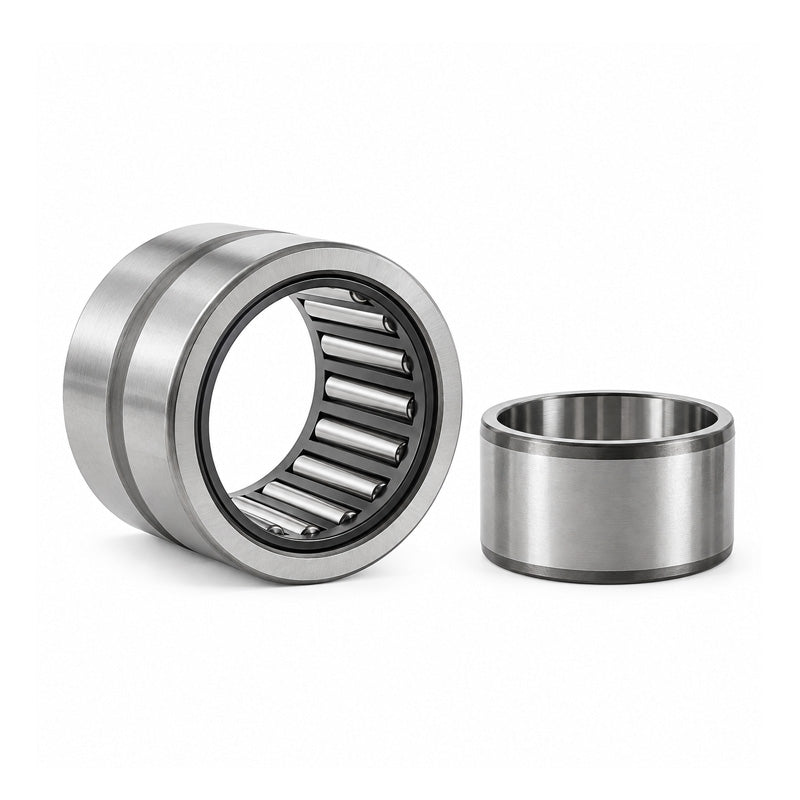

Major Brand NA49012RS Needle Roller Bearing With Shaft Sleeve and Two Rubber Seals 12x24x14mm
- Regular price
- $54.14 ex VAT
- Sale price
- $54.14
- Regular price
-
In stock
Quantity Price Breaks
10
$48.18
19
$45.48
29
$44.94
39
$44.39
49
$43.85
74
$43.31
99
$40.61
199
$40.06
249
$39.52
499
$38.98
999
$37.90
SKU:
NA4901.2RS-MB
Major Brand NA49012RS Needle Roller Bearing With Shaft Sleeve and Two Rubber Seals 12x24x14mm
- Regular price
- $54.14 ex VAT
- Sale price
- $54.14
- Regular price
-
Description
|
Needle Roller Bearings with Flanges: Constructed with flanges in the outer ring to assist in the centralisation of the needle bearing race, sizes up to 17mm have no lubrication hole, or annular groove around the outside, above this size an oil hole and annular groove is provided. Generally a single row bearing with the exceptions of some of the larger sizes. Benefits: Flanged to provide centralisation, compact and self contained and includes the inner ring. |
Technical
| d | = | 12mm |
| D | = | 24mm |
| B | = | 14mm |
| C | = | 13mm |
| Dynamic load | = | 8090 N |
| Static load | = | 9650 N |
| Fatigue load limit Pu | = | 1140 N |
| Speed in grease | = | 12000 rpm |
| F | = | 16mm |
| r1r2 | = | 0.3mm |
| S (axial disp) | = | 0.5mm |
| da min | = | 14mm |
| Da max | = | 22mm |
| ra max | = | 0.3mm |
