SKU: N1400-187SS

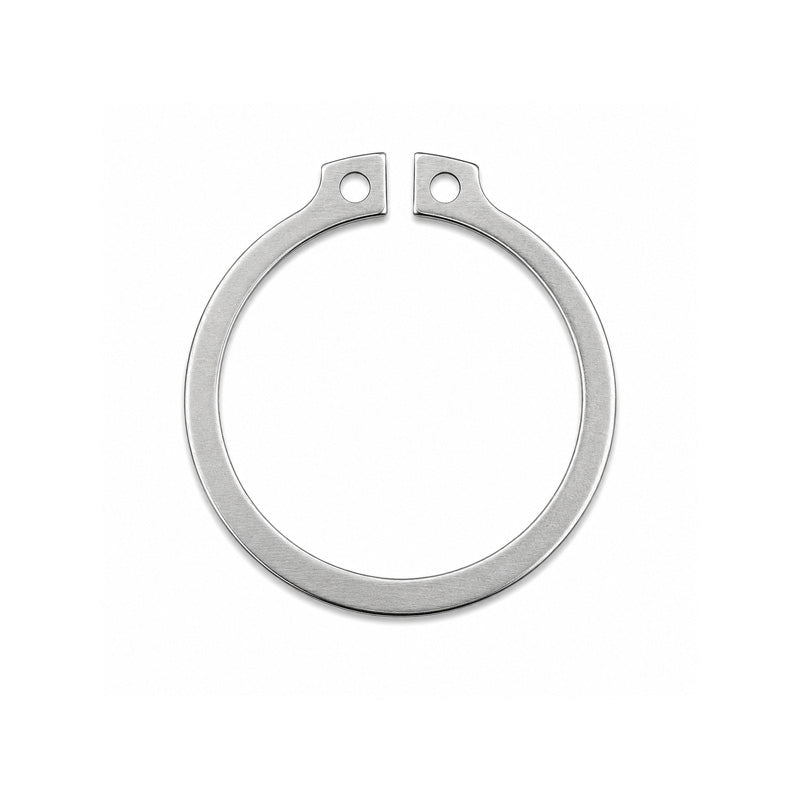

Stainless Steel External Circlip for 1.87 inch Shaft Diameter Un-Sprung Diameter 1.735 inch
Stainless Steel External Circlip for 1.87 inch Shaft Diameter Un-Sprung Diameter 1.735 inch
Equivalent to: N1400-187SS
Out of stock
Description
Description
|
Stainless Steel Imperial External Circlips: The most common form of axially fitted circlips for shafts with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Standard material: Stainless Spring Steel - Standard Finish: Phosphate and Oil Benefits: Cost effective replacement, durable, removable, corrosion resistant. |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Inside Diameter:
- 44.07mm = 1.735 inch
- Material:
- Stainless Steel
- Shaft Size:
- 47.63mm = 1.875 (1-7/8) inch
- Thickness:
- 1.57mm = 0.062 inch
- Groove Diameter:
- 44.93mm = 1.769 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size (S) | 1.875 inch |
| Ring Thickness (t) | 0.062 inch |
| Thickness tolerance (t) | 0.003 inch |
| Unstressed diameter (D) | 1.735 inch |
| Unstressed diameter tolerance (D) | +0.013 / -0.020 inch |
| Lug (L) | 0.205 inch |
| Beam (b) | 0.197 inch |
| h | 0.104 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 1.769 inch |
| Groove tolerance (G) | 0.005 inch |
| Minimum Groove Width (W) | 0.068 inch |
| Groove Width Tolerance (W) | +0.004 / -0.000 inch |
| Groove depth (d) | 0.053 inch |
