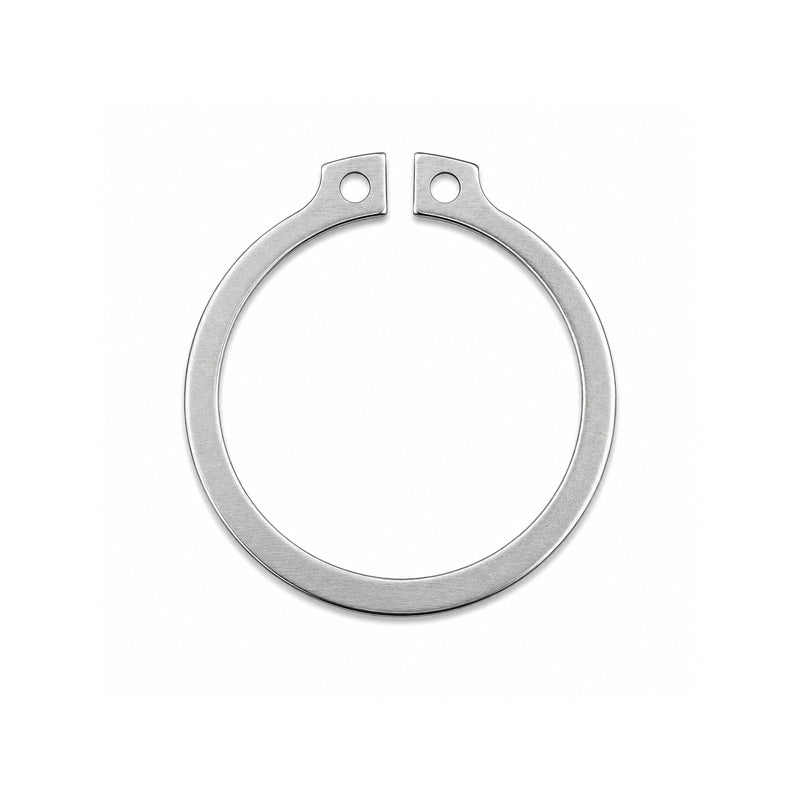

Stainless Steel External Circlip for 0.23 inch Shaft Diameter Un-Sprung Diameter 0.215 inch
Stainless Steel External Circlip for 0.23 inch Shaft Diameter Un-Sprung Diameter 0.215 inch
Equivalent to: N1400-023SS
Out of stock
Description
Description
|
Stainless Steel Imperial External Circlips: The most common form of axially fitted circlips for shafts with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Standard material: Stainless Spring Steel - Standard Finish: Phosphate and Oil Benefits: Cost effective replacement, durable, removable, corrosion resistant. |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Inside Diameter:
- 5.46mm = 0.215 inch
- Material:
- Stainless Steel
- Shaft Size:
- 5.95mm = 0.236 (15/64) inch
- Thickness:
- 0.38mm = 0.015 inch
- Groove Diameter:
- 5.64mm = 0.222 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size (S) | 0.236 inch |
| Ring Thickness (t) | 0.015 inch |
| Thickness tolerance (t) | 0.002 inch |
| Unstressed diameter (D) | 0.215 inch |
| Unstressed diameter tolerance (D) | +0.002 / -0.004 inch |
| Lug (L) | 0.058 inch |
| Beam (b) | 0.03 inch |
| h | 0.019 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 0.222 inch |
| Groove tolerance (G) | 0.0015 inch |
| Minimum Groove Width (W) | 0.018 inch |
| Groove Width Tolerance (W) | +0.002 / -0.000 inch |
| Groove depth (d) | 0.007 inch |
