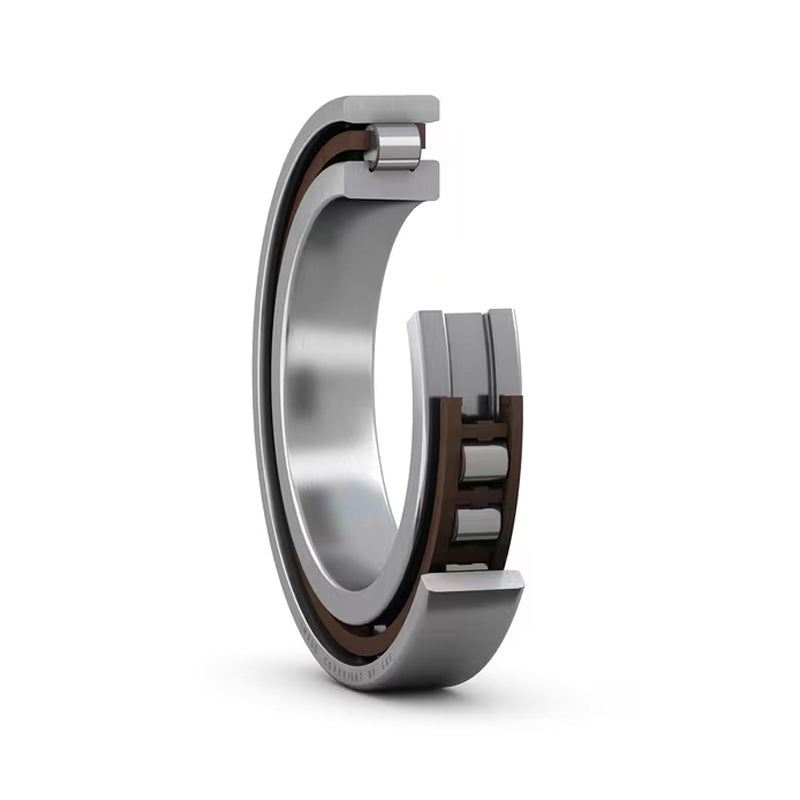

SKF N1018KTNHC5SP Super Precision Single Row Cylindrical Roller Spindle Bearing 90x140x24mm

SKF Super Precision Single Row Cylindrical Rollers: SKF super-precision single row cylindrical roller bearings in the N 10 series have, as standard, a 1:12 tapered bore suffix K. A tapered bore is preferred because the taper enables accurate adjustment of clearance or preload during mounting. The bearings have two integral flanges on the inner ring and no flanges on the outer ring. To improve lubricant flow, these bearings can be supplied with a lubrication hole in the outer ring on request.
Benefits: High-speed capability, high radial load carrying capacity, high rigidity, low cross-sectional height.

Brand / Quality:

SKF - High Quality

Inside Diameter:

90mm

Outside Diameter:

140mm

Width:

24mm

Seals / Shields:

None

Style:

Super Precision Cylindrical Roller Bearings
