SKU: N03-SKF

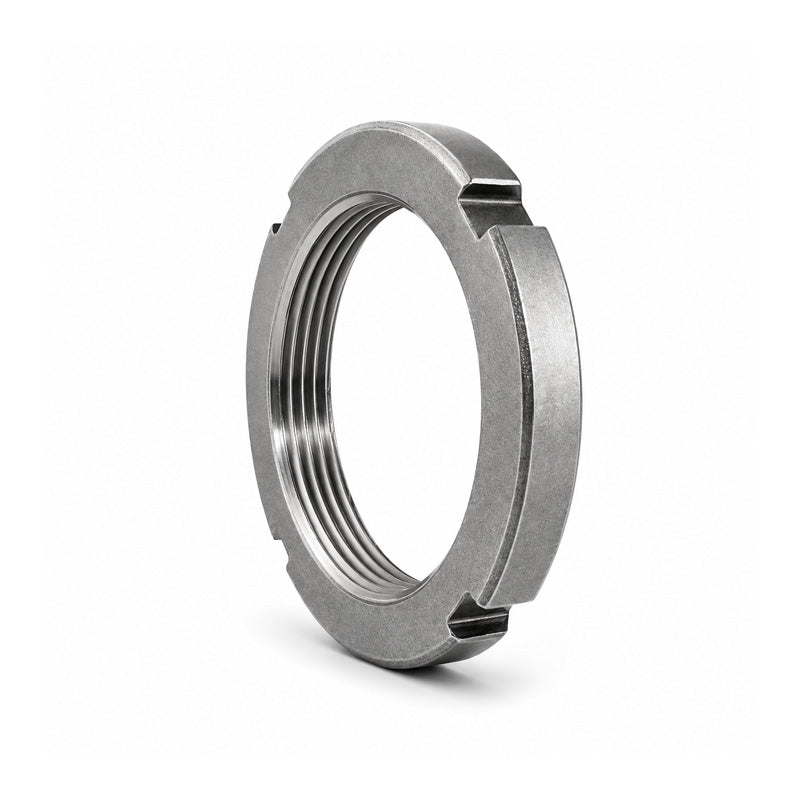

SKF N03 Lock Nut (Lock Washer Type) 0.664x0.938x1.13 inch
SKF N03 Lock Nut (Lock Washer Type) 0.664x0.938x1.13 inch
Out of stock
Share this product
Description
Description
SKF Lock Nuts: Supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- 0.664 inch
Technical
Technical
| G | 0.664 inch |
|---|---|
| Threads per inch | 32 |
| d<sub>1</sub> | 0.938 inch |
| d<sub>3</sub> max | 1.13 inch |
| B | 0.354 inch |
| b | 0.12 inch |
| h | 0.104 inch |
| Static axial load carrying capacity | 7419 lbf |
| Mass | 0.0272 kg |
| Associated spanner | HN2-3 |
| Associated locking device | W03 |
